DMP2002UPS-13

DMP2002UPS-13

Part NumberDMP2002UPS-13

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 20V POWERDI5060-8

DatasheetDMP2002UPS

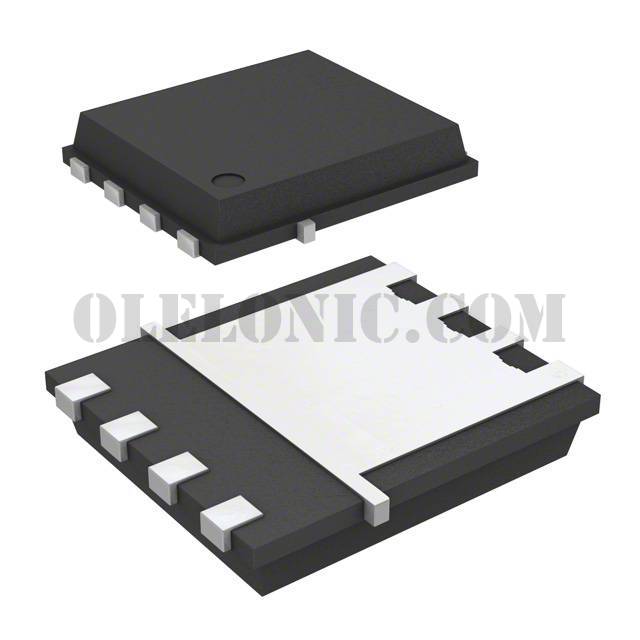

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 60A (Tc) 2.3W (Ta) Surface Mount PowerDI5060-8

To learn about the specification of DMP2002UPS-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP2002UPS-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP2002UPS-13.
We are offering DMP2002UPS-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP2002UPS-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP2002UPS
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	1.9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	585nC @ 10V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	12826pF @ 10V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI5060-8
Package / Case	8-PowerTDFN
