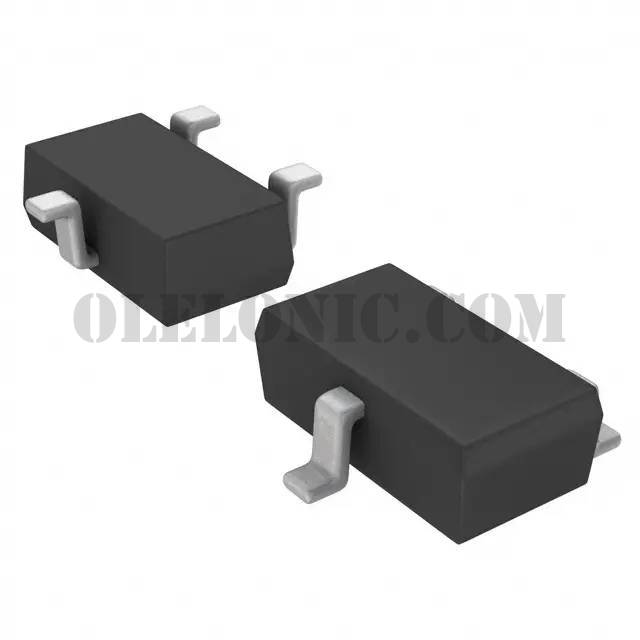

RQ5A030APTL

RQ5A030APTL

Part NumberRQ5A030APTL

ManufacturerRohm Semiconductor

DescriptionMOSFET P-CH 12V 3A TSMT3

DatasheetRQ5A030AP

Package / CaseSC-96

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 3A (Ta) 1W (Ta) Surface Mount TSMT3

To learn about the specification of RQ5A030APTL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RQ5A030APTL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RQ5A030APTL.
We are offering RQ5A030APTL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RQ5A030APTL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RQ5A030AP
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	62mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	16nC @ 4.5V
Vgs (Max)	-8V
Input Capacitance (Ciss) (Max) @ Vds	2000pF @ 6V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TSMT3
Package / Case	SC-96
