DMN2020LSN-7

DMN2020LSN-7

Part NumberDMN2020LSN-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 20V 6.9A SC59

DatasheetDMN2020LSN

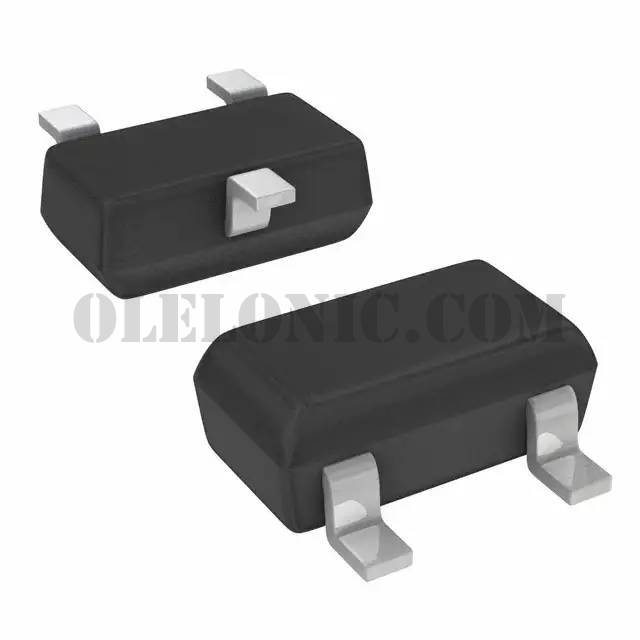

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 6.9A (Ta) 610mW (Ta) Surface Mount SC-59-3

To learn about the specification of DMN2020LSN-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2020LSN-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2020LSN-7.
We are offering DMN2020LSN-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2020LSN-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN2020LSN
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	20mOhm @ 9.4A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11.6nC @ 4.5V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1149pF @ 10V
FET Feature	-
Power Dissipation (Max)	610mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-59-3
Package / Case	TO-236-3, SC-59, SOT-23-3
