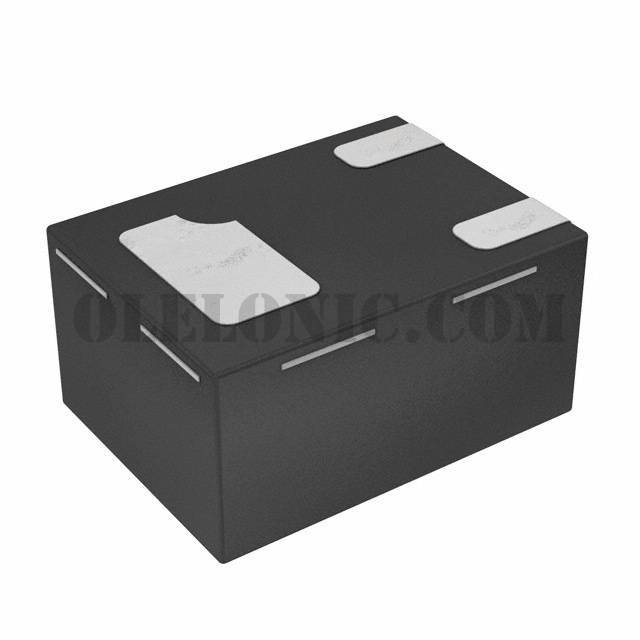

DMN1260UFA-7B

DMN1260UFA-7B

Part NumberDMN1260UFA-7B

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 12V 0.5A X2DFN-3

DatasheetDMN1260UFA

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 500mA (Ta) 360mW (Ta) Surface Mount X2-DFN0806-3

To learn about the specification of DMN1260UFA-7B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN1260UFA-7B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN1260UFA-7B.
We are offering DMN1260UFA-7B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN1260UFA-7B - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN1260UFA
Standard Package	10000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	366mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.96nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	60pF @ 10V
FET Feature	-
Power Dissipation (Max)	360mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN0806-3
Package / Case	3-XFDFN
