DMN1054UCB4-7

DMN1054UCB4-7

Part NumberDMN1054UCB4-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 8V 2.7A X1-WLB0808-4

DatasheetDMN1054UCB4

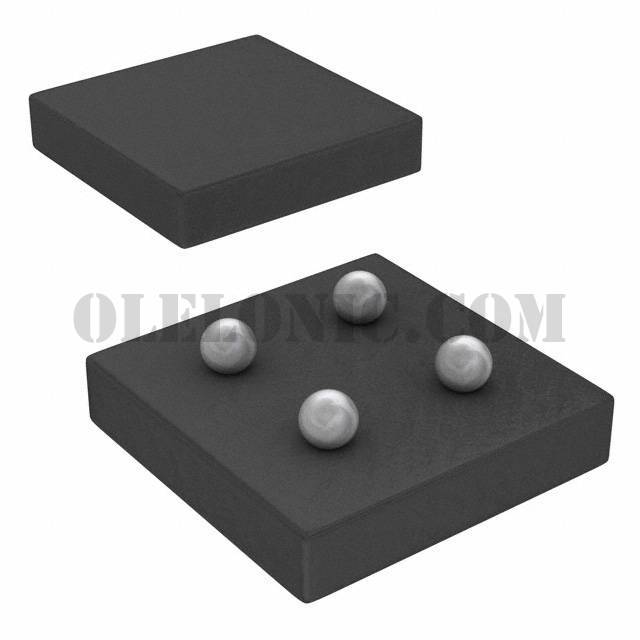

Package / Case4-XFBGA, WLBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 8V 2.7A (Ta) 740mW (Ta) Surface Mount X1-WLB0808-4

To learn about the specification of DMN1054UCB4-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN1054UCB4-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN1054UCB4-7.
We are offering DMN1054UCB4-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN1054UCB4-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN1054UCB4
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8V
Current - Continuous Drain (Id) @ 25°C	2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	42mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15nC @ 4.5V
Vgs (Max)	±5V
Input Capacitance (Ciss) (Max) @ Vds	908pF @ 6V
FET Feature	-
Power Dissipation (Max)	740mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X1-WLB0808-4
Package / Case	4-XFBGA, WLBGA
