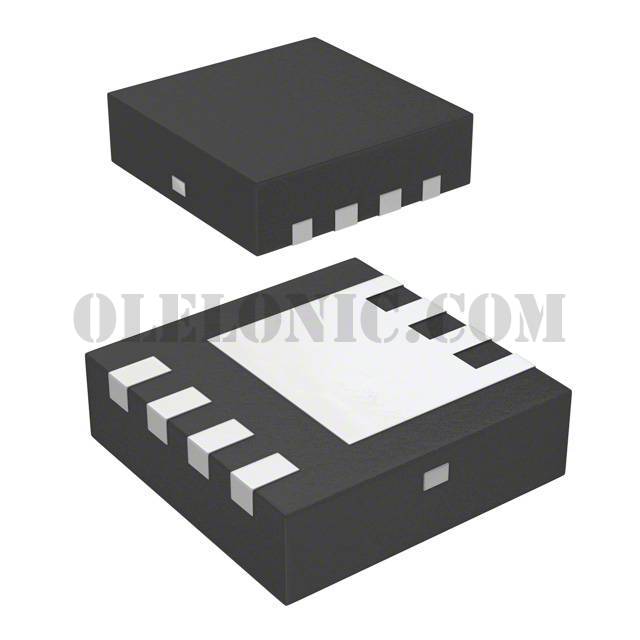

DMG4800LFG-7

DMG4800LFG-7

Part NumberDMG4800LFG-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 30V 7.44A 8DFN

DatasheetDMG4800LFG

Package / Case8-PowerUDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 7.44A (Ta) 940mW (Ta) Surface Mount U-DFN3030-8

To learn about the specification of DMG4800LFG-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMG4800LFG-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMG4800LFG-7.
We are offering DMG4800LFG-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMG4800LFG-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMG4800LFG
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	7.44A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	17mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.47nC @ 5V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	798pF @ 10V
FET Feature	-
Power Dissipation (Max)	940mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN3030-8
Package / Case	8-PowerUDFN
