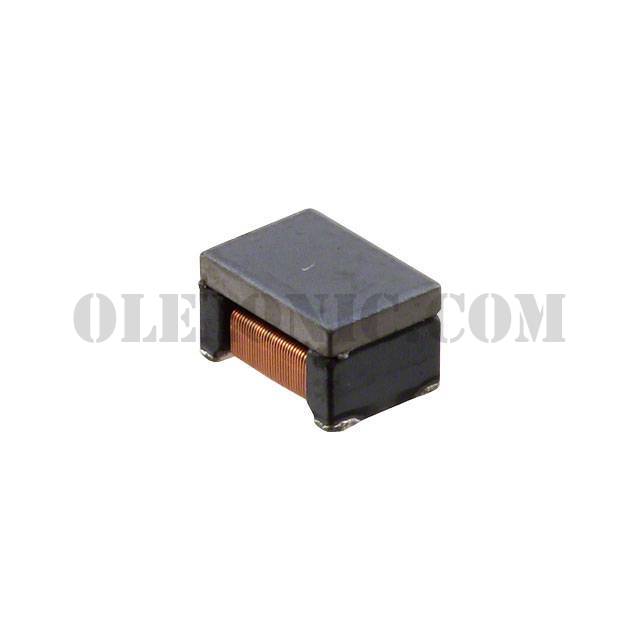

DLW43SH101XP2L

Part NumberDLW43SH101XP2L

ManufacturerMurata Electronics North America

DescriptionCMC 100UH 170MA 2LN SMD AEC-Q200

DatasheetDLx Series Datasheet

Package / Case1812 (4532 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH @ 100kHz 2 Line Common Mode Choke Surface Mount 170mA DCR 2Ohm

To learn about the specification of DLW43SH101XP2L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLW43SH101XP2L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLW43SH101XP2L.
We are offering DLW43SH101XP2L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLW43SH101XP2L - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	DLx Series Datasheet
Standard Package	1
Manufacturer	Murata Electronics North America
Series	DLW43
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Inductance @ Frequency	100µH @ 100kHz
Current Rating (Max)	170mA
DC Resistance (DCR) (Max)	2Ohm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max)	0.112" (2.85mm)
Package / Case	1812 (4532 Metric)
