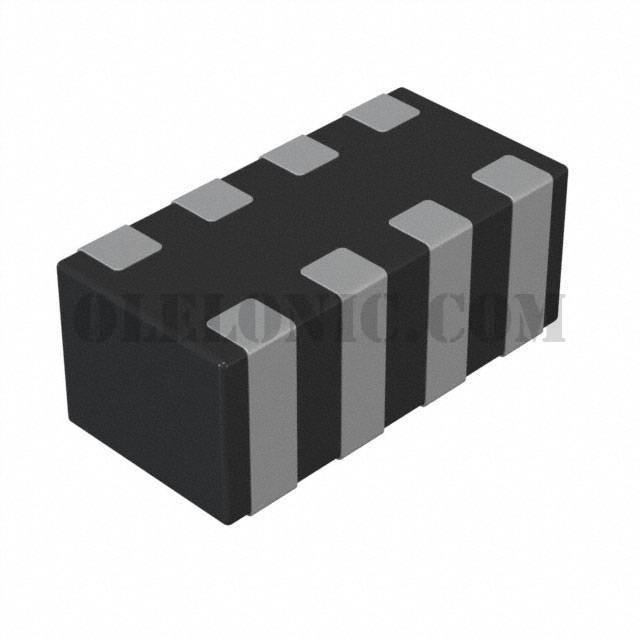

DLP2ADN900HL4L

Part NumberDLP2ADN900HL4L

ManufacturerMurata Electronics North America

DescriptionCMC 130MA 4LN 90 OHM SMD

DatasheetDLP2ADNyyyHL4y Spec

Package / Case0804 (2010 Metric), 8 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4 Line Common Mode Choke Surface Mount 90 Ohms @ 100MHz 130mA DCR 2.13Ohm

To learn about the specification of DLP2ADN900HL4L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLP2ADN900HL4L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLP2ADN900HL4L.
We are offering DLP2ADN900HL4L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLP2ADN900HL4L - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	DLP2ADNyyyHL4y Spec
Standard Package	1
Manufacturer	Murata Electronics North America
Series	DLP2A
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Signal Line
Number of Lines	4
Impedance @ Frequency	90 Ohms @ 100MHz
Current Rating (Max)	130mA
DC Resistance (DCR) (Max)	2.13Ohm
Voltage Rating - DC	5V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.079" L x 0.039" W (2.00mm x 1.00mm)
Height (Max)	0.036" (0.92mm)
Package / Case	0804 (2010 Metric), 8 Lead
