DGTD65T15H2TF
DGTD65T15H2TF

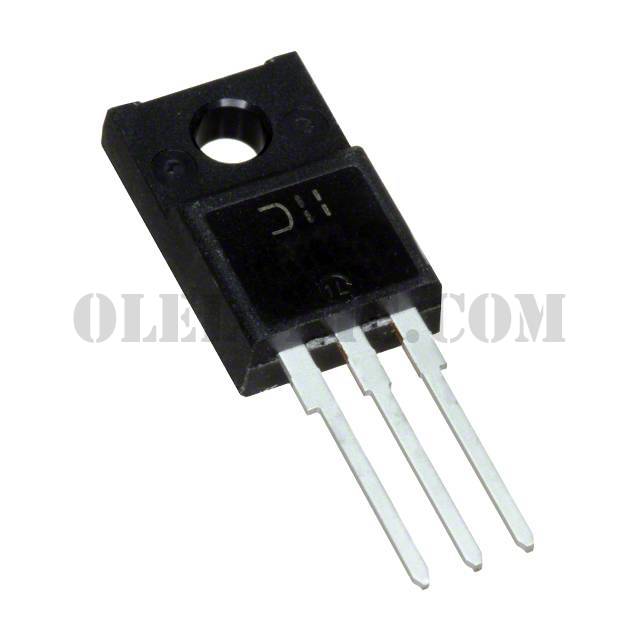

Part Number DGTD65T15H2TF Description IGBT600V-XITO-220AB Package / Case TO-220-3 Full Pack, Isolated TabUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Field Stop 650V 30A 48W Through Hole ITO-220AB
To learn about the specification of DGTD65T15H2TF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DGTD65T15H2TF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DGTD65T15H2TF.
We are offering DGTD65T15H2TF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
DGTD65T15H2TF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet DGTD65T15H2TF Standard Package 1000 Manufacturer Diodes Incorporated Series - Packaging Tube Part Status Active IGBT Type Field Stop Voltage - Collector Emitter Breakdown (Max) 650V Current - Collector (Ic) (Max) 30A Current - Collector Pulsed (Icm) 60A Vce(on) (Max) @ Vge, Ic 2V @ 15V, 15A Power - Max 48W Switching Energy 270µJ (on), 86µJ (off) Input Type Standard Gate Charge 61nC Td (on/off) @ 25°C 19ns/128ns Test Condition 400V, 15A, 10Ohm, 15V Reverse Recovery Time (trr) 150ns Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Full Pack, Isolated Tab Supplier Device Package ITO-220AB
