Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	UC1610, UC3610
Standard Package	40
Manufacturer	Texas Instruments
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Single Phase
Technology	Schottky
Voltage - Peak Reverse (Max)	50V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 1A
Current - Reverse Leakage @ Vr	100µA @ 40V
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount

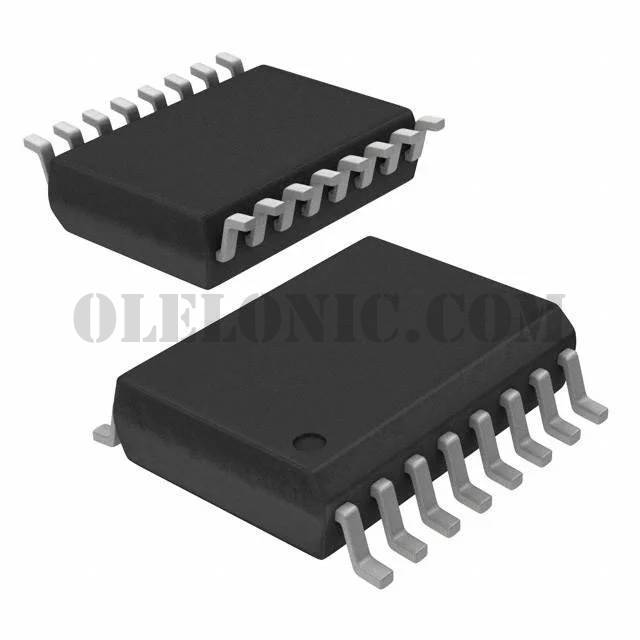

Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
Base Part Number	UC3610
