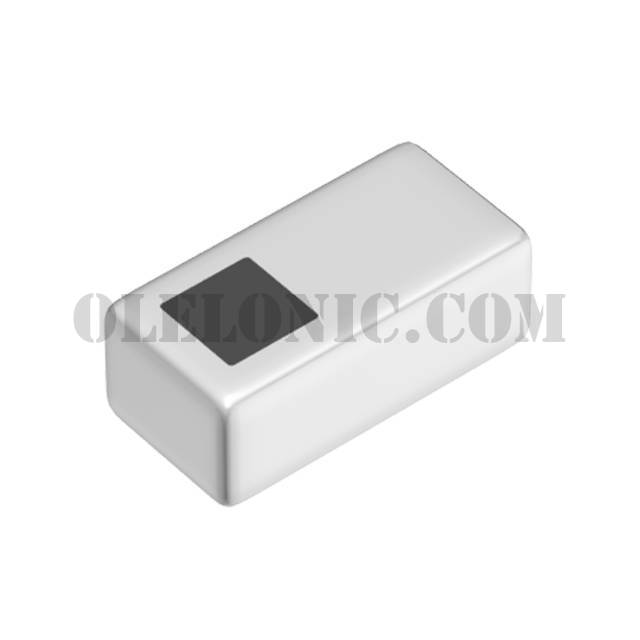

DEA165538BT-2236B1-H

Part NumberDEA165538BT-2236B1-H

ManufacturerTDK Corporation

DescriptionRF FILTER BAND PASS 0603

DatasheetDEA165538BT-2236B1-H Datasheet

Package / Case0603 (1608 Metric), 3 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionFrequency Band Pass RF Filter (Radio Frequency) Bandwidth 1.8dB 0603 (1608 Metric), 3 PC Pad

To learn about the specification of DEA165538BT-2236B1-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DEA165538BT-2236B1-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DEA165538BT-2236B1-H.
We are offering DEA165538BT-2236B1-H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DEA165538BT-2236B1-H - Product Attributes

Categories	Filters / RF Filters
Datasheet	DEA165538BT-2236B1-H Datasheet
Standard Package	1
Manufacturer	TDK Corporation
Series	DEA
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Band Pass
Ripple	-
Insertion Loss	1.8dB
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric), 3 PC Pad
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max)	0.026" (0.65mm)
