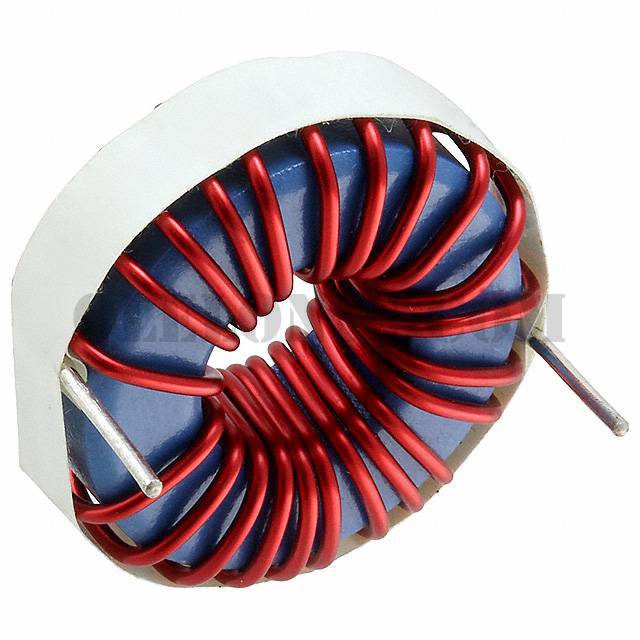

CTX50-7-52LP-R

Part NumberCTX50-7-52LP-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 50UH 10.5A 16.3 MOHM

DatasheetLow Cost Power Inductors

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description50µH Unshielded Toroidal Inductor 10.5A 16.3mOhm Max Radial, Horizontal (Open)

To learn about the specification of CTX50-7-52LP-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX50-7-52LP-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX50-7-52LP-R.
We are offering CTX50-7-52LP-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX50-7-52LP-R - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Low Cost Power Inductors
Standard Package	25
Manufacturer	Eaton - Electronics Division
Series	CTX
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	50µH
Tolerance	±20%
Current Rating (Amps)	10.5A
Current - Saturation	10.2A
Shielding	Unshielded
DC Resistance (DCR)	16.3mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 75°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Horizontal (Open)
Supplier Device Package	-
Size / Dimension	1.535" Dia (39.00mm)
Height - Seated (Max)	0.661" (16.80mm)
