CTX100-10-52LPR

Part NumberCTX100-10-52LPR

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 100UH 17.6A 10.9 MOHM

DatasheetLow Cost Power Inductors

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

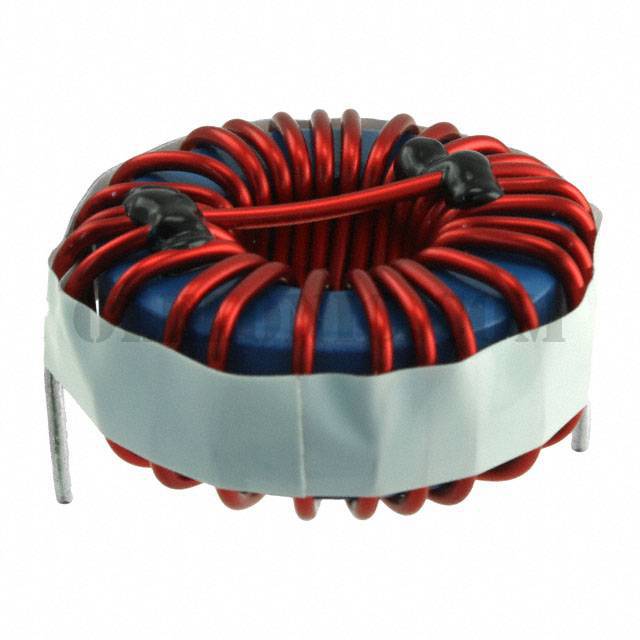

Detailed Description100µH Unshielded Toroidal Inductor 17.6A 10.9mOhm Max Radial, Horizontal (Open)

To learn about the specification of CTX100-10-52LPR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX100-10-52LPR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX100-10-52LPR.
We are offering CTX100-10-52LPR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX100-10-52LPR - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Low Cost Power Inductors
Standard Package	16
Manufacturer	Eaton - Electronics Division
Series	CTX
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	100µH
Tolerance	±20%
Current Rating (Amps)	17.6A
Current - Saturation	13A
Shielding	Unshielded
DC Resistance (DCR)	10.9mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 75°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Horizontal (Open)
Supplier Device Package	-
Size / Dimension	2.244" Dia (57.00mm)
Height - Seated (Max)	1.083" (27.50mm)
