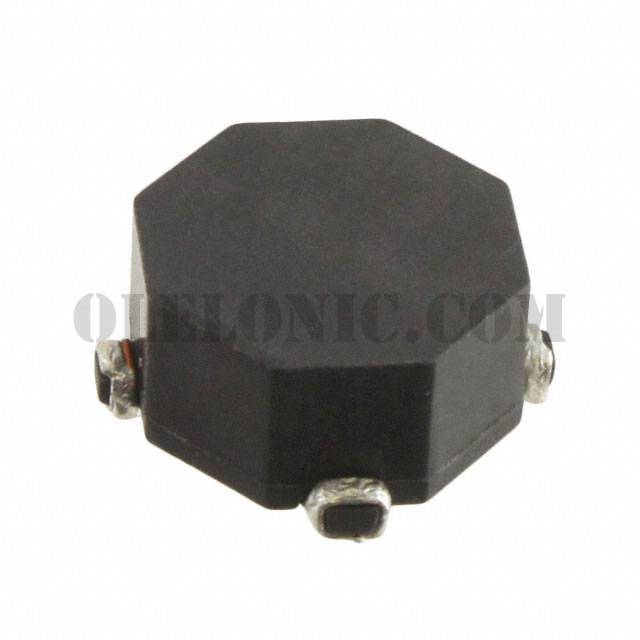

CTX20-4P-R

Part NumberCTX20-4P-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 20.62UH SMD

DatasheetCTX Series ECONO-PAC, OCTA-PAC/PLUS

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 82.47µH Inductance - Connected in Series 20.62µH Inductance - Connected in Parallel 84mOhm Max DC Resistance (DCR) - Parallel 1.9A Nonstandard

To learn about the specification of CTX20-4P-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX20-4P-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX20-4P-R.
We are offering CTX20-4P-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX20-4P-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	CTX Series ECONO-PAC, OCTA-PAC/PLUS
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	Econo-Pac™
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	20.62µH
Inductance - Connected In Series	82.47µH
Tolerance	±20%
Current Rating - Parallel	1.9A
Current Rating - Series	950mA
DC Resistance (DCR) - Parallel	84mOhm Max
DC Resistance (DCR) - Series	337mOhm Max
Shielding	Unshielded
Ratings	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height	0.250" (6.35mm)
