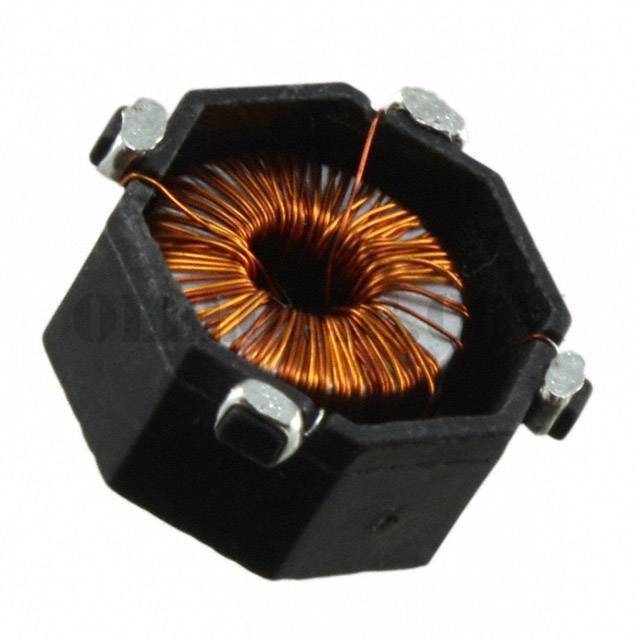

CTX300-4A-R

Part NumberCTX300-4A-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 302.8UH SMD

DatasheetCTX Series ECONO-PAC, OCTA-PAC/PLUS

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 302.8µH Inductance - Connected in Parallel 787mOhm Max DC Resistance (DCR) - Parallel 750mA Nonstandard

To learn about the specification of CTX300-4A-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX300-4A-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX300-4A-R.
We are offering CTX300-4A-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX300-4A-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	CTX Series ECONO-PAC, OCTA-PAC/PLUS
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	OCTA-PAC® PLUS
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	302.8µH
Inductance - Connected In Series	1.2mH
Tolerance	±25%
Current Rating - Parallel	750mA
Current Rating - Series	370mA
Current Saturation - Parallel	760mA
Current Saturation - Series	380mA
DC Resistance (DCR) - Parallel	787mOhm Max
DC Resistance (DCR) - Series	3.148Ohm Max
Shielding	Unshielded
Ratings	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height	0.250" (6.35mm)
