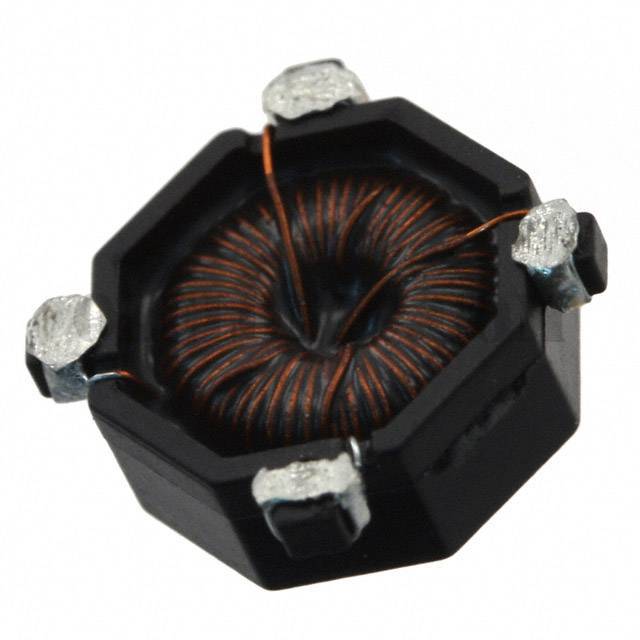

CTX20-1-R


CTX20-1-R

Part NumberCTX20-1-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX20-1-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1100
ManufacturerEaton - Electronics Division
SeriesOCTA-PAC®
PackagingTape & Reel (TR)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel19.6µH
Inductance - Connected In Series78.4µH
Tolerance±20%
Current Rating - Parallel1A
Current Rating - Series500mA
DC Resistance (DCR) - Parallel146mOhm Max
DC Resistance (DCR) - Series583mOhm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height0.165" (4.19mm)

CTX20-1-R - Related Products

More >>
CTX15-1-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 57.6µH Inductance - Connected in Series 14.4µH Inductance - Connected in Parallel 80mOhm Max DC Resistance (DCR) - Parallel 1.1A Nonstandard, OCTA-PAC® View
CTX100-1-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 396.9µH Inductance - Connected in Series 99.23µH Inductance - Connected in Parallel 784mOhm Max DC Resistance (DCR) - Parallel 440mA Nonstandard, OCTA-PAC® View
CTX50-2-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 204.73µH Inductance - Connected in Series 51.18µH Inductance - Connected in Parallel 210mOhm Max DC Resistance (DCR) - Parallel 920mA Nonstandard, OCTA-PAC® View
CTX50-4A-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 200.4µH Inductance - Connected in Series 50.11µH Inductance - Connected in Parallel 104mOhm Max DC Resistance (DCR) - Parallel 2.05A Nonstandard, OCTA-PAC® PLUS View
CTX10-4A-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 42.11µH Inductance - Connected in Series 10.53µH Inductance - Connected in Parallel 20mOhm Max DC Resistance (DCR) - Parallel 4.67A Nonstandard, OCTA-PAC® PLUS View
CTX10-4A-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 42.11µH Inductance - Connected in Series 10.53µH Inductance - Connected in Parallel 20mOhm Max DC Resistance (DCR) - Parallel 4.67A Nonstandard, OCTA-PAC® PLUS View
CTX33-3-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 131.42µH Inductance - Connected in Series 32.86µH Inductance - Connected in Parallel 83mOhm Max DC Resistance (DCR) - Parallel 960mA Nonstandard, OCTA-PAC® View
CTX25-4A-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 100.51µH Inductance - Connected in Series 25.14µH Inductance - Connected in Parallel 48mOhm Max DC Resistance (DCR) - Parallel 3.02A Nonstandard, OCTA-PAC® PLUS View
CTX150-1-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 592.9µH Inductance - Connected in Series 148.23µH Inductance - Connected in Parallel 965mOhm Max DC Resistance (DCR) - Parallel 380mA Nonstandard, OCTA-PAC® View
CTX33-3P-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 130.54µH Inductance - Connected in Series 32.63µH Inductance - Connected in Parallel 146mOhm Max DC Resistance (DCR) - Parallel 1.3A Nonstandard, Econo-Pac™ View
CTX25-4-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 103.68µH Inductance - Connected in Series 25.92µH Inductance - Connected in Parallel 63mOhm Max DC Resistance (DCR) - Parallel 2A Nonstandard, OCTA-PAC® View
CTX20-1-R Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 78.4µH Inductance - Connected in Series 19.6µH Inductance - Connected in Parallel 146mOhm Max DC Resistance (DCR) - Parallel 1A Nonstandard, OCTA-PAC® View
