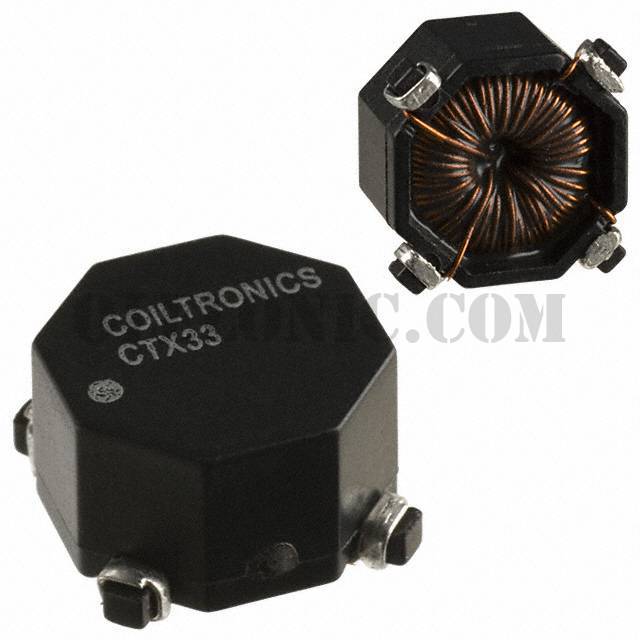

CTX33-3P-R

Part NumberCTX33-3P-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 32.63UH SMD

DatasheetCTX Series ECONO-PAC, OCTA-PAC/PLUS

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 130.54µH Inductance - Connected in Series 32.63µH Inductance - Connected in Parallel 146mOhm Max DC Resistance (DCR) - Parallel 1.3A Nonstandard

To learn about the specification of CTX33-3P-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX33-3P-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX33-3P-R.
We are offering CTX33-3P-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX33-3P-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	CTX Series ECONO-PAC, OCTA-PAC/PLUS
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	Econo-Pac™
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	32.63µH
Inductance - Connected In Series	130.54µH
Tolerance	±20%
Current Rating - Parallel	1.3A
Current Rating - Series	650mA
DC Resistance (DCR) - Parallel	146mOhm Max
DC Resistance (DCR) - Series	571mOhm Max
Shielding	Unshielded
Ratings	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height	0.190" (4.83mm)
