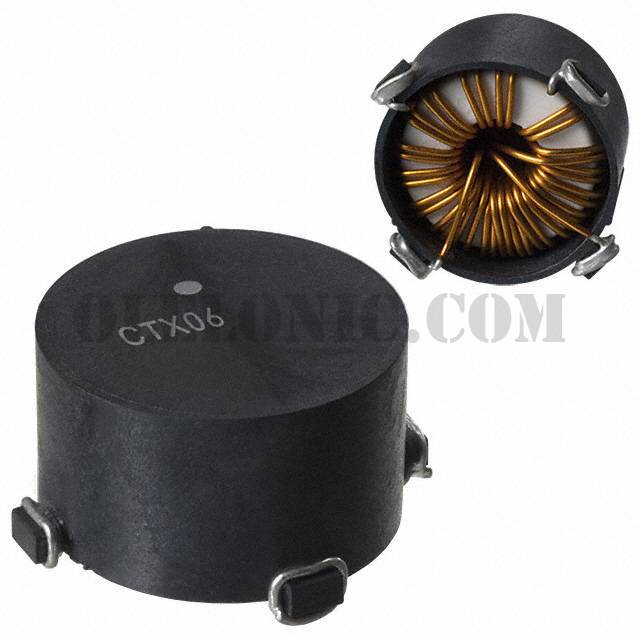

CTX06-14622

CTX06-14622

Part NumberCTX06-14622

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 22UH 8.5A 11.7 MOHM

DatasheetCTX06-14622

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Unshielded Toroidal Inductor 8.5A 11.7mOhm Max Nonstandard

To learn about the specification of CTX06-14622, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX06-14622 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX06-14622.
We are offering CTX06-14622 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX06-14622 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CTX06-14622
Standard Package	40
Manufacturer	Eaton - Electronics Division
Series	CTX
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	22µH
Tolerance	±0.25%
Current Rating (Amps)	8.5A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	11.7mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 75°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.984" L x 0.984" W (25.00mm x 25.00mm)
Height - Seated (Max)	0.484" (12.30mm)

CTX06-14622 - Related Products

	CTX06-14622	Eaton - Electronics Division, 22µH Unshielded Toroidal Inductor 8.5A 11.7mOhm Max Nonstandard, CTX	View
	CTX06-14621	Eaton - Electronics Division, 33µH Unshielded Toroidal Inductor 7.7A 14.1mOhm Max Nonstandard, CTX	View
	CTX06-14620	Eaton - Electronics Division, 47µH Unshielded Toroidal Inductor 7.1A 16.6mOhm Max Nonstandard, CTX	View
