CSFA103-G


CSFA103-G

Part NumberCSFA103-G

Manufacturer

Description

Datasheet

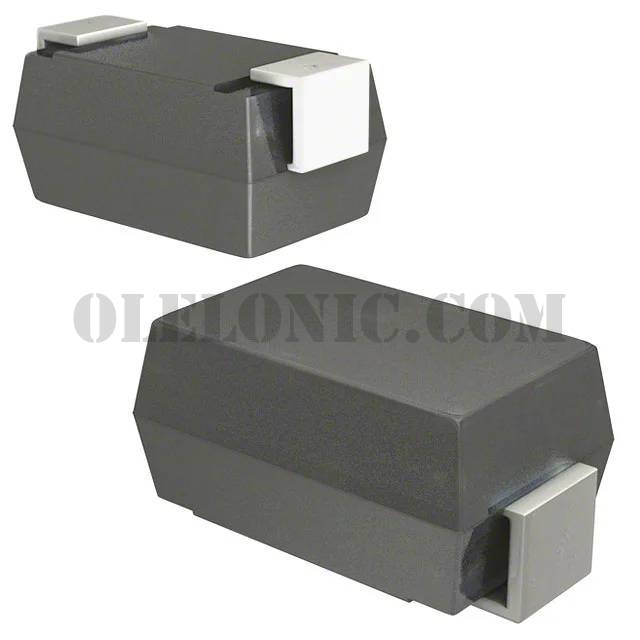

Package / CaseDO-214AC, SMA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CSFA103-G - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package5000
ManufacturerComchip Technology
Series-
PackagingTape & Reel (TR)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)200V
Current - Average Rectified (Io)1A
Voltage - Forward (Vf) (Max) @ If950mV @ 1A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)35ns
Current - Reverse Leakage @ Vr5µA @ 200V
Capacitance @ Vr, F-
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
Operating Temperature - Junction-55°C ~ 150°C
Base Part NumberCSFA103
