Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	VS-SD3000CxxK Series
Standard Package	2
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	3800A
Voltage - Forward (Vf) (Max) @ If	1.22V @ 6000A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	75mA @ 1000V
Capacitance @ Vr, F	-
Mounting Type	Clamp On

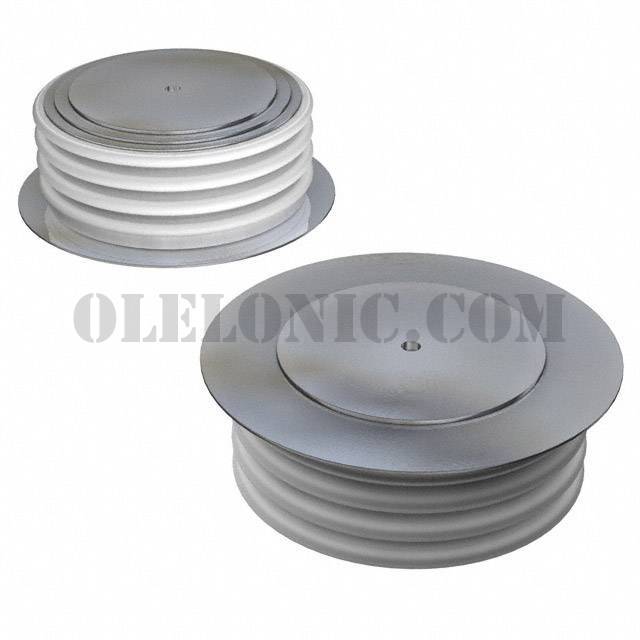

Package / Case	DO-200AC, K-PUK
Supplier Device Package	DO-200AC, K-PUK
