CSD85302LT

Part NumberCSD85302LT

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH

DatasheetCSD85302L Datasheet

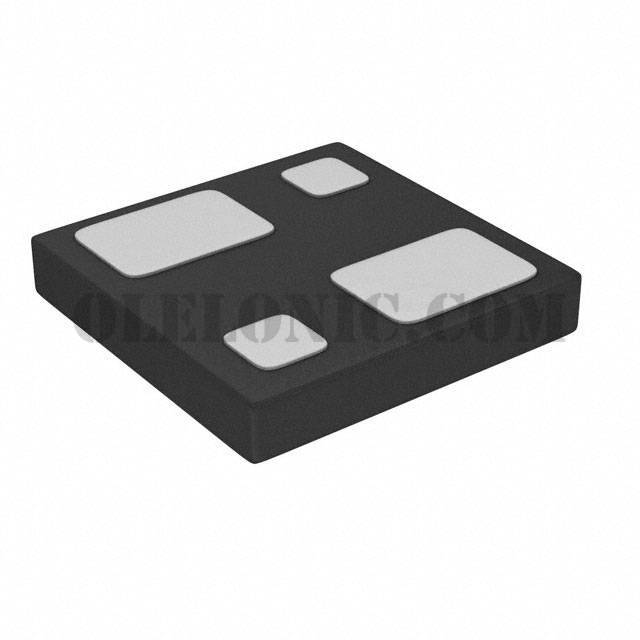

Package / Case4-XFLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 1.7W Surface Mount 4-Picostar (1.31x1.31)

To learn about the specification of CSD85302LT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD85302LT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD85302LT.
We are offering CSD85302LT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD85302LT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD85302L Datasheet
Standard Package	250
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	7.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1.7W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XFLGA
Supplier Device Package	4-Picostar (1.31x1.31)
