CSD25501F3T

CSD25501F3T

Part NumberCSD25501F3T

ManufacturerTexas Instruments

Description20-V P-CHANNEL FEMTOFET MOSFET

DatasheetCSD25501F3 Datasheet

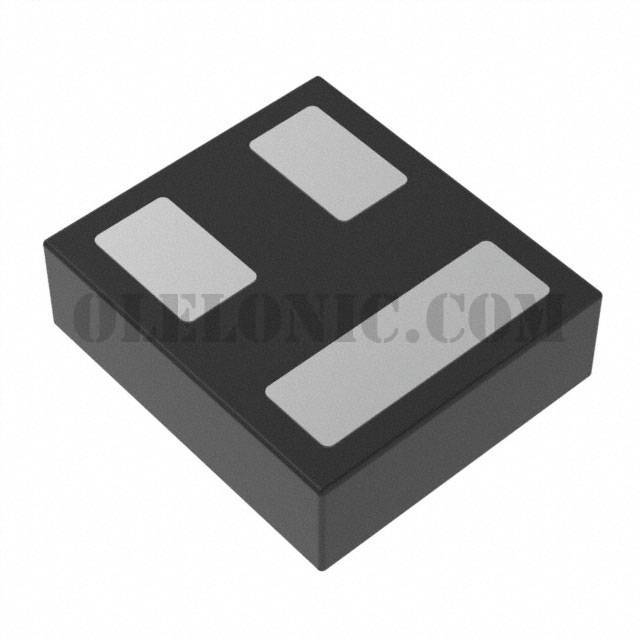

Package / Case3-XFLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3.6A (Ta) 500mW (Ta) Surface Mount 3-LGA (0.73x0.64)

To learn about the specification of CSD25501F3T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD25501F3T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD25501F3T.
We are offering CSD25501F3T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD25501F3T - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD25501F3 Datasheet
Standard Package	250
Manufacturer	Texas Instruments
Series	FemtoFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	76mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id	1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.33nC @ 4.5V
Vgs (Max)	-20V
Input Capacitance (Ciss) (Max) @ Vds	385pF @ 10V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-LGA (0.73x0.64)
Package / Case	3-XFLGA
