CSD23203WT

CSD23203WT

Part NumberCSD23203WT

ManufacturerTexas Instruments

DescriptionMOSFET P-CH 8V 3A 6DSBGA

DatasheetCSD23203W

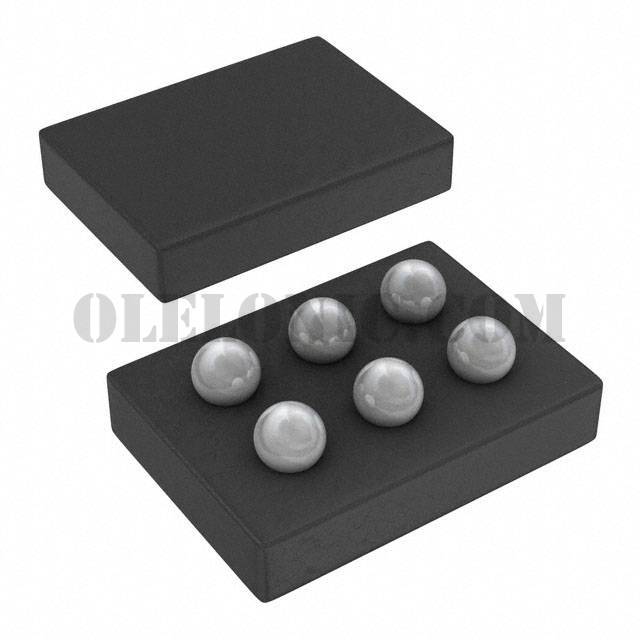

Package / Case6-UFBGA, DSBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 8V 3A (Ta) 750mW (Ta) Surface Mount 6-DSBGA

To learn about the specification of CSD23203WT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD23203WT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD23203WT.
We are offering CSD23203WT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD23203WT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD23203W
Standard Package	250
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	19.4mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.3nC @ 4.5V
Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	914pF @ 4V
FET Feature	-
Power Dissipation (Max)	750mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DSBGA
Package / Case	6-UFBGA, DSBGA
