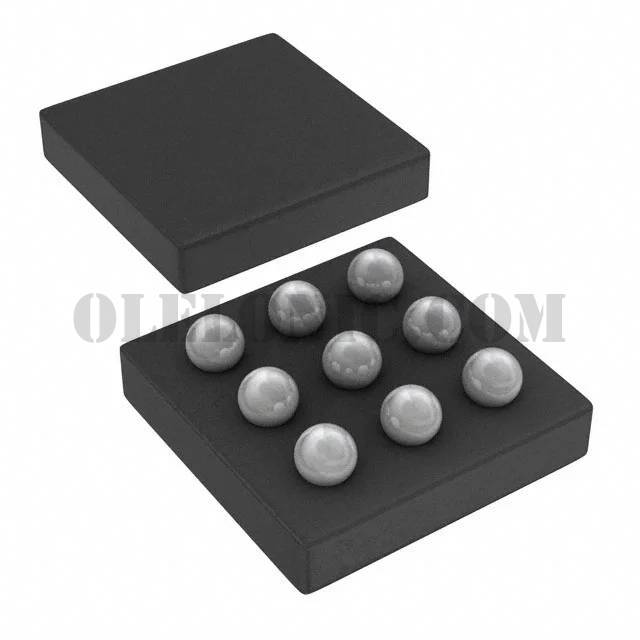

CSD22206WT

CSD22206WT

Part NumberCSD22206WT

ManufacturerTexas Instruments

DescriptionMOSFET P-CHANNEL 8V 5A 9-DSBGA

DatasheetCSD22206W Datasheet

Package / Case9-UFBGA, DSBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 8V 5A (Ta) 1.7W (Ta) Surface Mount 9-DSBGA (1.5x1.5)

To learn about the specification of CSD22206WT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD22206WT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD22206WT.
We are offering CSD22206WT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD22206WT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD22206W Datasheet
Standard Package	250
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8V
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	5.7mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14.6nC @ 4.5V
Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	2275pF @ 4V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	9-DSBGA (1.5x1.5)
Package / Case	9-UFBGA, DSBGA
