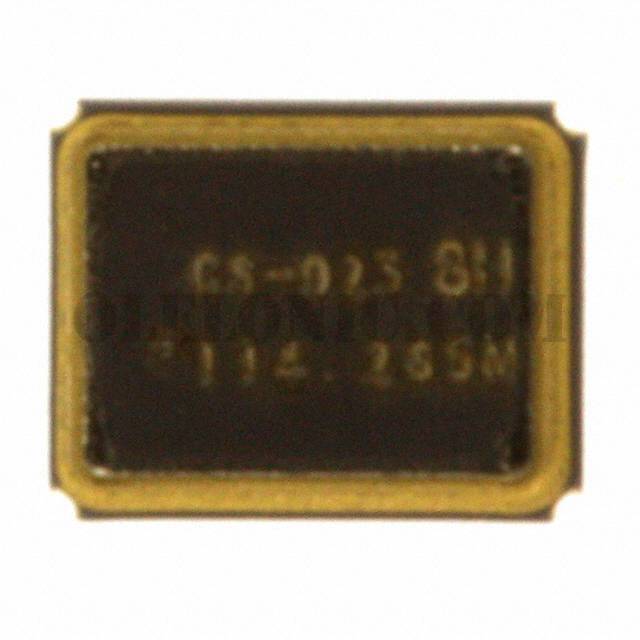

CS-023-114.285M

CS-023-114.285M

Part NumberCS-023-114.285M

ManufacturerConnor-Winfield

DescriptionCRYSTAL 114.2850MHZ 18PF SMD

DatasheetCS-018,-023

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description114.285MHz ±20ppm Crystal 18pF 80 Ohms 4-SMD, No Lead

To learn about the specification of CS-023-114.285M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CS-023-114.285M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CS-023-114.285M.
We are offering CS-023-114.285M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CS-023-114.285M - Product Attributes

Categories	Crystals, Oscillators, Resonators / Crystals
Datasheet	CS-018,-023
Standard Package	1
Manufacturer	Connor-Winfield
Series	CS-023
Packaging	Cut Tape (CT)
Part Status	Active
Type	MHz Crystal
Frequency	114.285MHz
Frequency Stability	±20ppm
Frequency Tolerance	±20ppm
Load Capacitance	18pF
ESR (Equivalent Series Resistance)	80 Ohms
Operating Mode	3rd Overtone
Operating Temperature	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.031" (0.80mm)
