CPH6445-TL-W

CPH6445-TL-W

Part NumberCPH6445-TL-W

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 60V 3.5A CPH6

DatasheetCPH6445

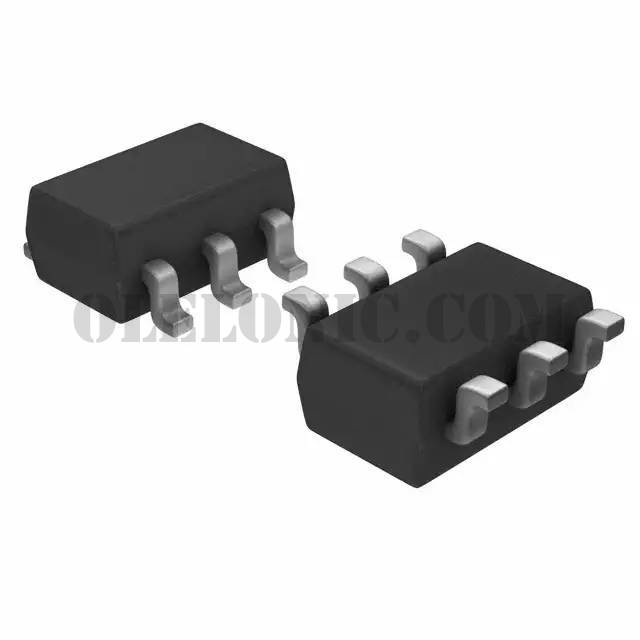

Package / CaseSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 3.5A (Ta) 1.6W (Ta) Surface Mount 6-CPH

To learn about the specification of CPH6445-TL-W, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPH6445-TL-W with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPH6445-TL-W.
We are offering CPH6445-TL-W for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPH6445-TL-W - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CPH6445
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	117mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	6.8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	310pF @ 20V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-CPH
Package / Case	SOT-23-6
