CMT908-H1
CMT908-H1

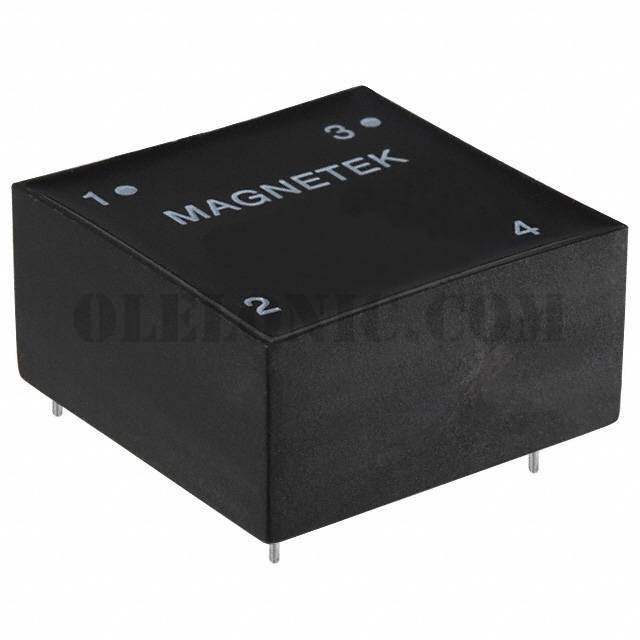

Part Number CMT908-H1 Description CMC 2MH 7.5A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2mH @ 10kHz 2 Line Common Mode Choke Through Hole 7.5A DCR 20mOhm
To learn about the specification of CMT908-H1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMT908-H1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMT908-H1.
We are offering CMT908-H1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CMT908-H1 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CMT908-H1 Standard Package 1 Manufacturer Triad Magnetics Series CMT Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 2mH @ 10kHz Current Rating (Max) 7.5A DC Resistance (DCR) (Max) 20mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature - Ratings - Approvals - Features ESD Mounting Type Through Hole Size / Dimension 1.500" L x 1.500" W (38.10mm x 38.10mm) Height (Max) 0.800" (20.32mm) Package / Case Horizontal, 4 PC Pin
