CM5740Z241B-10
CM5740Z241B-10

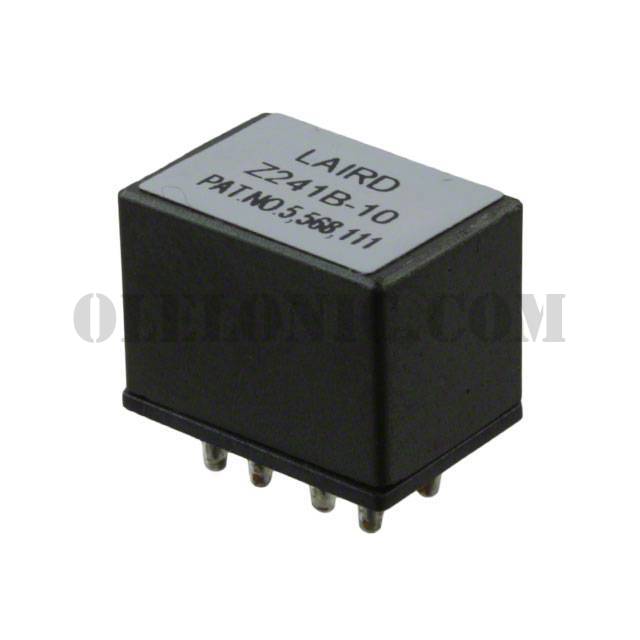

Part Number CM5740Z241B-10 Description CMC 20A 4LN 100 OHM TH Package / Case Vertical, 8 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 4 Line Common Mode Choke Through Hole 100 Ohms @ 100MHz 20A DCR 1.3mOhm
To learn about the specification of CM5740Z241B-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM5740Z241B-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM5740Z241B-10.
We are offering CM5740Z241B-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CM5740Z241B-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CM5740Z241B-10 Drawing Standard Package 165 Manufacturer Laird-Signal Integrity Products Series CM Packaging Bulk Part Status Active Filter Type Power, Signal Line Number of Lines 4 Impedance @ Frequency 100 Ohms @ 100MHz Current Rating (Max) 20A DC Resistance (DCR) (Max) 1.3mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.570" L x 0.395" W (14.48mm x 10.03mm) Height (Max) 0.424" (10.77mm) Package / Case Vertical, 8 PC Pin
