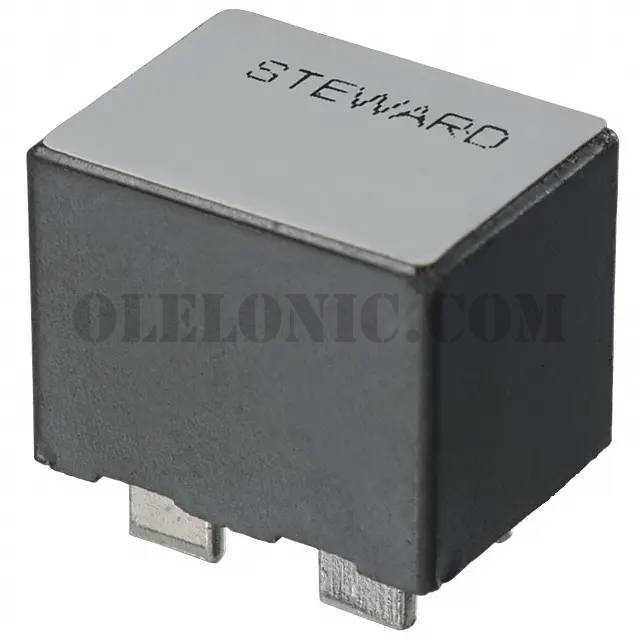

CM5441Z101B-10
CM5441Z101B-10
Part Number CM5441Z101B-10
Description CMC 75A 2LN 100 OHM TH
Package / Case Vertical, 4 PC Pin
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 2 Line Common Mode Choke Through Hole 100 Ohms @ 100MHz 75A DCR 0.3mOhm
To learn about the specification of CM5441Z101B-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM5441Z101B-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM5441Z101B-10.
We are offering CM5441Z101B-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CM5441Z101B-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CM5441Z101B-10 Drawing
Standard Package 165
Manufacturer Laird-Signal Integrity Products
Series CM
Packaging Bulk
Part Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 100 Ohms @ 100MHz
Current Rating (Max) 75A
DC Resistance (DCR) (Max) 0.3mOhm
Voltage Rating - DC -
Voltage Rating - AC -
Operating Temperature -40°C ~ 125°C
Ratings -
Approvals -
Features -
Mounting Type Through Hole
Size / Dimension 0.540" L x 0.410" W (13.72mm x 10.41mm)
Height (Max) 0.424" (10.77mm)
Package / Case Vertical, 4 PC Pin
