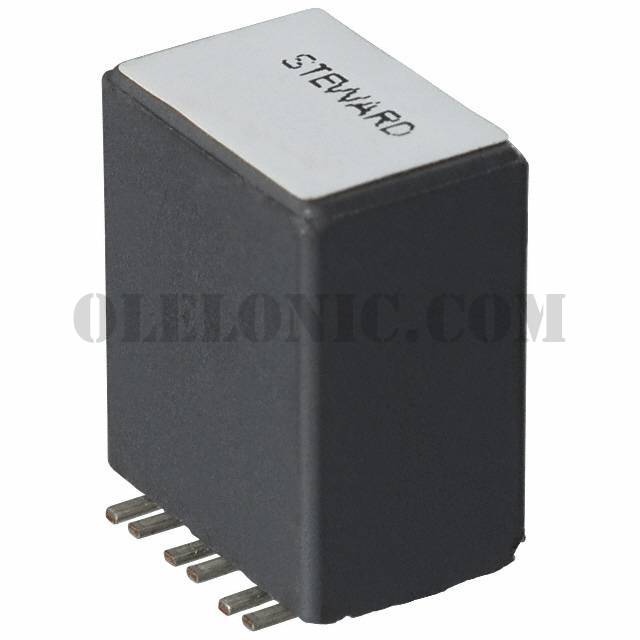

CM4732V301R-10
CM4732V301R-10
Part Number CM4732V301R-10
Description CMC 8A 6LN 300 OHM SMD
Package / Case Vertical, 12 Flat Lead
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 6 Line Common Mode Choke Surface Mount 300 Ohms @ 100MHz 8A DCR 10mOhm
To learn about the specification of CM4732V301R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM4732V301R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM4732V301R-10.
We are offering CM4732V301R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CM4732V301R-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CM4732V301R-10 Drawing
Standard Package 150
Manufacturer Laird-Signal Integrity Products
Series CM
Packaging Tape & Reel (TR)
Part Status Active
Filter Type Power Line
Number of Lines 6
Impedance @ Frequency 300 Ohms @ 100MHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 10mOhm
Voltage Rating - DC 30V
Voltage Rating - AC -
Operating Temperature -40°C ~ 125°C
Ratings -
Approvals -
Features -
Mounting Type Surface Mount
Size / Dimension 0.470" L x 0.430" W (11.94mm x 10.92mm)
Height (Max) 0.595" (15.11mm)
Package / Case Vertical, 12 Flat Lead
