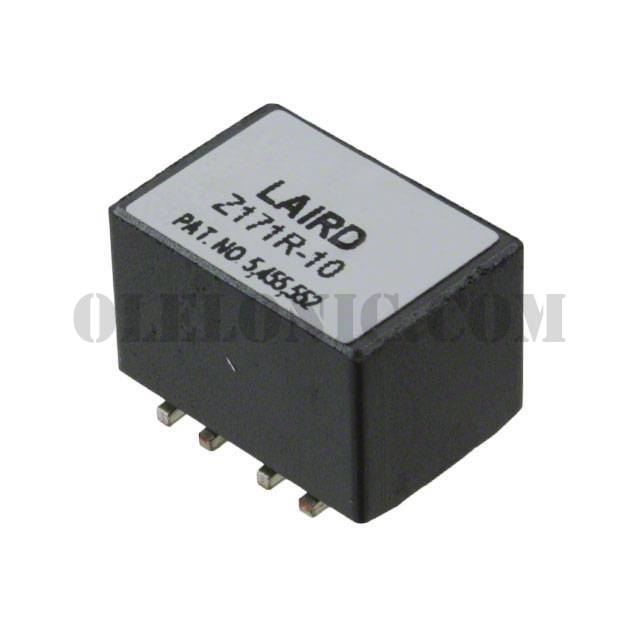

CM5740Z171R-10
CM5740Z171R-10
Part Number CM5740Z171R-10 Description CMC 20A 4LN 170 OHM SMD Package / Case Vertical, 8 Flat LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 4 Line Common Mode Choke Surface Mount 170 Ohms @ 100MHz 20A DCR 1mOhm
To learn about the specification of CM5740Z171R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM5740Z171R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM5740Z171R-10.
We are offering CM5740Z171R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CM5740Z171R-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CM5740Z171R-10 Drawing Standard Package 1 Manufacturer Laird-Signal Integrity Products Series CM Packaging Cut Tape (CT) Part Status Active Filter Type Power Line Number of Lines 4 Impedance @ Frequency 170 Ohms @ 100MHz Current Rating (Max) 20A DC Resistance (DCR) (Max) 1mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.570" L x 0.435" W (14.48mm x 11.05mm) Height (Max) 0.413" (10.49mm) Package / Case Vertical, 8 Flat Lead
