CM0805C221R-10
CM0805C221R-10

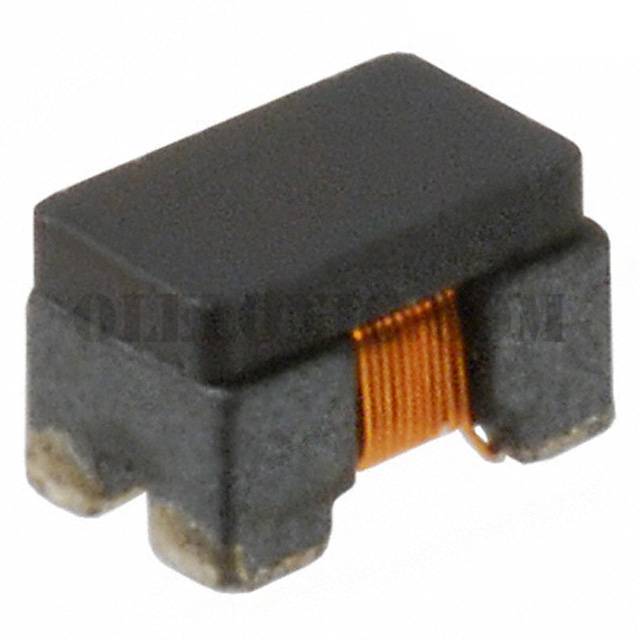

Part Number CM0805C221R-10 Description CMC 300MA 2LN 220 OHM SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 220 Ohms @ 100MHz 300mA DCR 400mOhm
To learn about the specification of CM0805C221R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM0805C221R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM0805C221R-10.
We are offering CM0805C221R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CM0805C221R-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CM0805C221R-10 Drawing Standard Package 1 Manufacturer Laird-Signal Integrity Products Series CM Packaging Cut Tape (CT) Part Status Active Filter Type Signal Line Number of Lines 2 Impedance @ Frequency 220 Ohms @ 100MHz Current Rating (Max) 300mA DC Resistance (DCR) (Max) 400mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm) Height (Max) 0.055" (1.40mm) Package / Case Horizontal, 4 PC Pad
