CL-25-50
CL-25-50

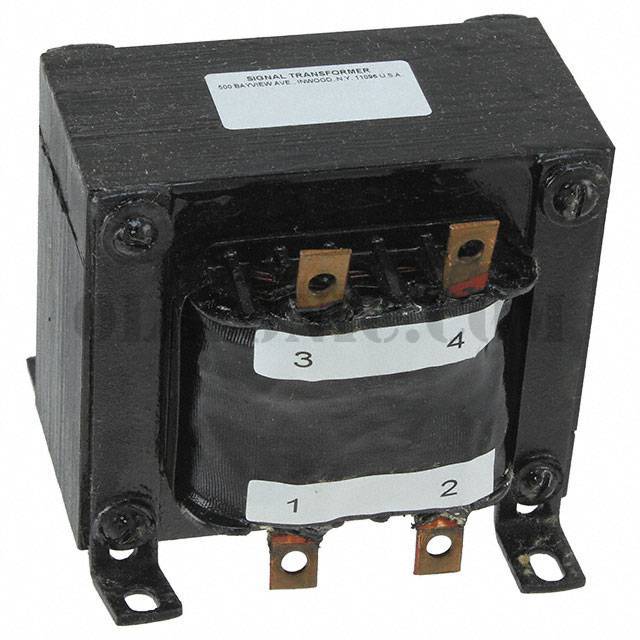

Part Number CL-25-50 Description INDUCT ARRAY 2COIL 300UH CHA MNT Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description Unshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 300µH Inductance - Connected in Parallel 3mOhm DC Resistance (DCR) - Parallel 50A Nonstandard
To learn about the specification of CL-25-50, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CL-25-50 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CL-25-50.
We are offering CL-25-50 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CL-25-50 - Product Attributes
Categories
Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet CH, CL Series Chokes Standard Package 1 Manufacturer Signal Transformer Series CL Packaging Bulk Part Status Active Number of Coils 2 Inductance - Connected In Parallel 300µH Inductance - Connected In Series 1.2mH Tolerance - Current Rating - Parallel 50A Current Rating - Series 25A DC Resistance (DCR) - Parallel 3mOhm DC Resistance (DCR) - Series 12mOhm Shielding Unshielded Ratings - Operating Temperature - Mounting Type Chassis Mount Package / Case Nonstandard Size / Dimension 3.870" L x 3.374" W (98.30mm x 85.70mm) Height 3.374" (85.70mm)
CL-12-24 Signal Transformer, Unshielded 2 Coil Inductor Array 4.8mH Inductance - Connected in Series 1.2mH Inductance - Connected in Parallel 13mOhm DC Resistance (DCR) - Parallel 24A Nonstandard, CL
View
CL-2-4 Signal Transformer, Unshielded 2 Coil Inductor Array 40mH Inductance - Connected in Series 10mH Inductance - Connected in Parallel 180mOhm DC Resistance (DCR) - Parallel 4A Nonstandard, CL
View
CL-6-12 Signal Transformer, Unshielded 2 Coil Inductor Array 12mH Inductance - Connected in Series 3mH Inductance - Connected in Parallel 38mOhm DC Resistance (DCR) - Parallel 12A Nonstandard, CL
View
CL-1-2 Signal Transformer, Unshielded 2 Coil Inductor Array 72mH Inductance - Connected in Series 18mH Inductance - Connected in Parallel 350mOhm DC Resistance (DCR) - Parallel 2A Nonstandard, CL
View
CL-4-8 Signal Transformer, Unshielded 2 Coil Inductor Array 20mH Inductance - Connected in Series 5mH Inductance - Connected in Parallel 75mOhm DC Resistance (DCR) - Parallel 8A Nonstandard, CL
View
CL-25-50 Signal Transformer, Unshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 300µH Inductance - Connected in Parallel 3mOhm DC Resistance (DCR) - Parallel 50A Nonstandard, CL
View
