Categories	Capacitors / Ceramic Capacitors
Datasheet	CKG Series, Automotive MegaCap
Standard Package	1000
Manufacturer	TDK Corporation
Series	MEGACAP, CKG
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	0.015µF
Tolerance	±5%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	Low ESL
Ratings	AEC-Q200
Applications	Automotive, SMPS Filtering, Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	Nonstandard SMD
Size / Dimension	0.142" L x 0.102" W (3.60mm x 2.60mm)
Height - Seated (Max)	-
Thickness (Max)	0.136" (3.45mm)
Lead Spacing	-
Lead Style	-

CKG32KX7R1H105M335AH	TDK Corporation, 1µF ±20% 50V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG57NX7S1H226M500JH	TDK Corporation, 22µF ±20% 50V Ceramic Capacitor X7S Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG45NX7S2A106M500JJ	TDK Corporation, 10µF ±20% 100V Ceramic Capacitor X7S Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57KX7R2A225M335JJ	TDK Corporation, 2.2µF ±20% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG57NX7S1H226M500JJ	TDK Corporation, 22µF ±20% 50V Ceramic Capacitor X7S Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG45KX7R1C106K290JH	TDK Corporation, 10µF ±10% 16V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7S1H106M335JJ	TDK Corporation, 10µF ±20% 50V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG45KX7T2J154M290JH	TDK Corporation, 0.15µF ±20% 630V Ceramic Capacitor X7T Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7S2A106M335JJ	TDK Corporation, 10µF ±20% 100V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG45NX7T2J334M500JJ	TDK Corporation, 0.33µF ±20% 630V Ceramic Capacitor X7T Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57KX7T2J334M335JH	TDK Corporation, 0.33µF ±20% 630V Ceramic Capacitor X7T Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7R2A105M335JH	TDK Corporation, 1µF ±20% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View

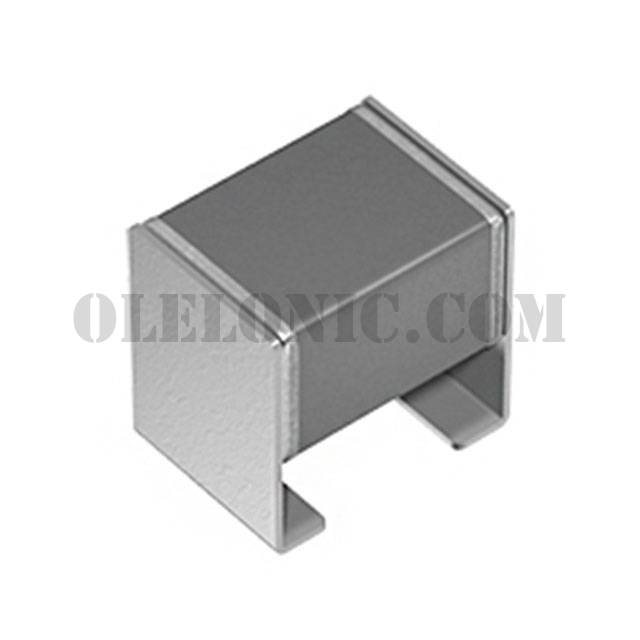

CKG32KC0G3A153J335AJ

Part NumberCKG32KC0G3A153J335AJ
