Categories	Capacitors / Ceramic Capacitors
Datasheet	CKG Series, Commercial, MegaCap
Standard Package	1000
Manufacturer	TDK Corporation
Series	MEGACAP, CKG
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	100V
Temperature Coefficient	X7S
Operating Temperature	-55°C ~ 125°C
Features	Low ESL
Ratings	-
Applications	SMPS Filtering, Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	Nonstandard SMD
Size / Dimension	0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.138" (3.50mm)
Lead Spacing	-
Lead Style	L-Lead

CKG32KX7S2A335M335AH	TDK Corporation, 3.3µF ±20% 100V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7R2A225K335JH	TDK Corporation, 2.2µF ±10% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG57NX5R2A106M500JH	TDK Corporation, 10µF ±20% 100V Ceramic Capacitor X5R Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57KX7R2A105K335JJ	TDK Corporation, 1µF ±10% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG45NX7R2A225M500JH	TDK Corporation, 2.2µF ±20% 100V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57KX7R1H475K335JH	TDK Corporation, 4.7µF ±10% 50V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG32KX7R1H105M335AH	TDK Corporation, 1µF ±20% 50V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG32KX7S1H685M335AH	TDK Corporation, 6.8µF ±20% 50V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7R2A475K335JH	TDK Corporation, 4.7µF ±10% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG57NX5R1E476M500JJ	TDK Corporation, 47µF ±20% 25V Ceramic Capacitor X5R Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG45KX7T2E684K290JH	TDK Corporation, 0.68µF ±10% 250V Ceramic Capacitor X7T Nonstandard SMD, MEGACAP, CKG	View
CKG32KC0G2J333J335AH	TDK Corporation, 0.033µF ±5% 630V Ceramic Capacitor C0G, NP0 Nonstandard SMD, MEGACAP, CKG	View

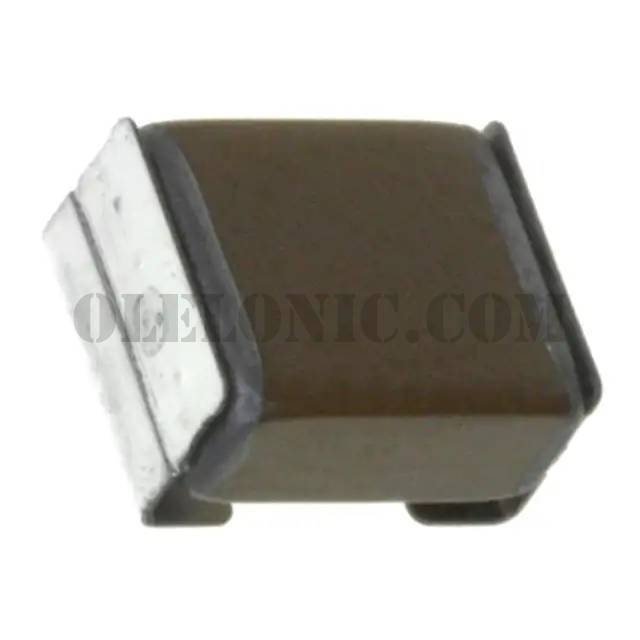

CKG57KX7S2A106M335JH

Part NumberCKG57KX7S2A106M335JH
