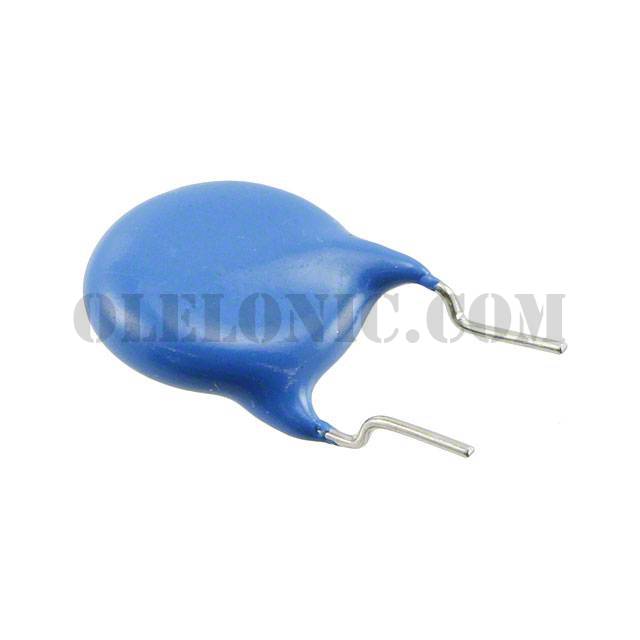

Categories	Capacitors / Ceramic Capacitors
Datasheet	CK45-RR Series, Automotive
Standard Package	1000
Manufacturer	TDK Corporation
Series	CK45-RR
Packaging	Bulk
Part Status	Active
Capacitance	1000pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	R
Operating Temperature	-40°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.650" (16.50mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked

CK45-R3AD331KANRA	TDK Corporation, 330pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD222K-VRA	TDK Corporation, 2200pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD151KANRA	TDK Corporation, 150pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD101K-VRA	TDK Corporation, 100pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD221K-NRA	TDK Corporation, 220pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3FD471K-NRA	TDK Corporation, 470pF ±10% 3000V (3kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD331K-VRA	TDK Corporation, 330pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD471KANRA	TDK Corporation, 470pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD471K-VRA	TDK Corporation, 470pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3FD222K-NRA	TDK Corporation, 2200pF ±10% 3000V (3kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD471K-NRA	TDK Corporation, 470pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD102K-VRA	TDK Corporation, 1000pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View

CK45-R3DD102KANRA

Part NumberCK45-R3DD102KANRA
