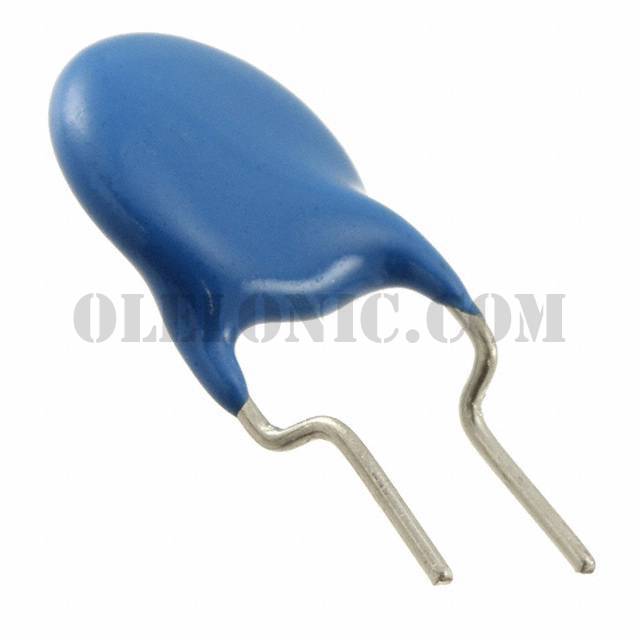

Categories	Capacitors / Ceramic Capacitors
Datasheet	CK45-RR Series, Commercial
Standard Package	1000
Manufacturer	TDK Corporation
Series	CK45-RR
Packaging	Bulk
Part Status	Active
Capacitance	1500pF
Tolerance	±10%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	R
Operating Temperature	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Lead Style	Formed Leads - Kinked

CK45-R3AD152K-NRA	TDK Corporation, 1500pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD681K-NRA	TDK Corporation, 680pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD152KANRA	TDK Corporation, 1500pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD221K-NRA	TDK Corporation, 220pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD102KANRA	TDK Corporation, 1000pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD222K-VRA	TDK Corporation, 2200pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD102K-NRA	TDK Corporation, 1000pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD101K-VRA	TDK Corporation, 100pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD151K-NRA	TDK Corporation, 150pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD222KANRA	TDK Corporation, 2200pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD152K-VRA	TDK Corporation, 1500pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD152K-NRA	TDK Corporation, 1500pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View

CK45-R3AD152K-NRA

Part NumberCK45-R3AD152K-NRA
