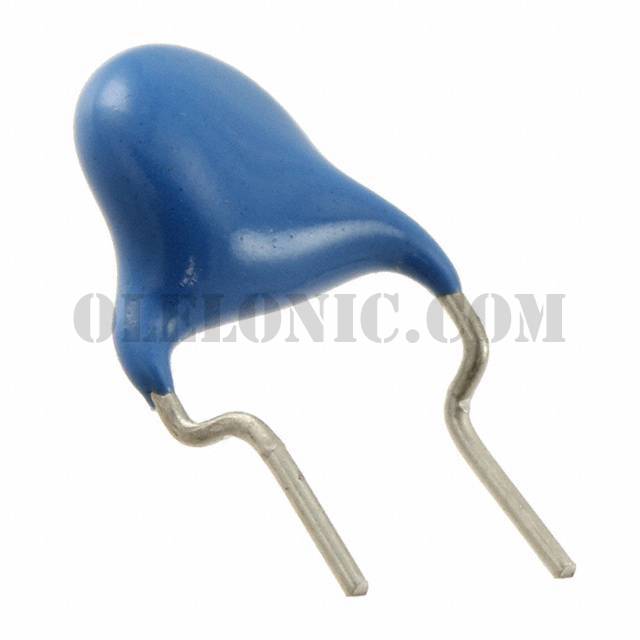

Categories	Capacitors / Ceramic Capacitors
Datasheet	CK45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CK45
Packaging	Bulk
Part Status	Active
Capacitance	220pF
Tolerance	±10%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	B
Operating Temperature	-25°C ~ 105°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.217" Dia (5.50mm)
Height - Seated (Max)	0.374" (9.50mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Lead Style	Formed Leads - Kinked
