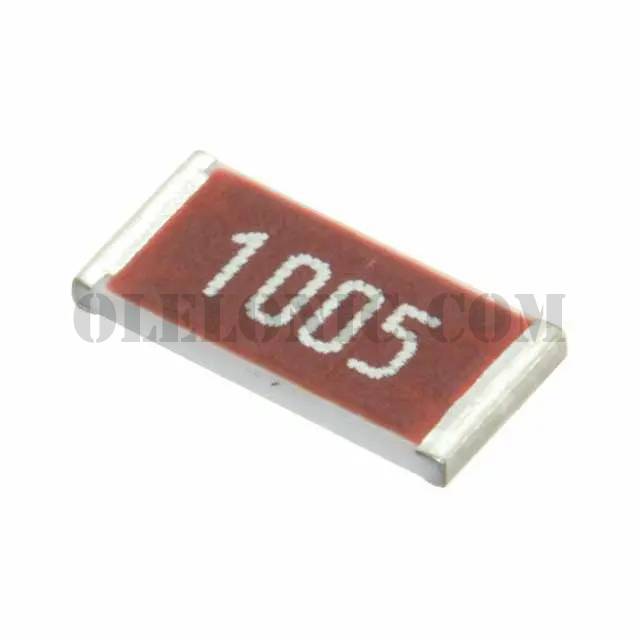

CHV2512-FX-1005ELF


CHV2512-FX-1005ELF

Part NumberCHV2512-FX-1005ELF

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CHV2512-FX-1005ELF - Product Attributes

Categories Resistors / Chip Resistor - Surface Mount
Datasheet
Standard Package4000
ManufacturerBourns Inc.
SeriesCHV
PackagingTape & Reel (TR)
Part StatusActive
Resistance10 MOhms
Tolerance±1%
Power (Watts)1W
CompositionThick Film
FeaturesHigh Voltage
Temperature Coefficient±100ppm/°C
Operating Temperature-55°C ~ 155°C
Package / CaseNonstandard
Supplier Device Package2512
Size / Dimension0.126" L x 0.252" W (3.20mm x 6.40mm)
Height - Seated (Max)0.030" (0.75mm)
Number of Terminations2
Failure Rate-
Base Part NumberCHV2512
