Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CH, CL Series Chokes
Standard Package	1
Manufacturer	Signal Transformer
Series	-
Packaging	Bulk
Part Status	Active
Type	-
Material - Core	-
Inductance	100mH
Tolerance	-
Current Rating (Amps)	1A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	1.5Ohm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-
Mounting Type	Chassis Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	3.000" L x 2.500" W (76.20mm x 63.50mm)
Height - Seated (Max)	2.500" (63.50mm)

CH-12	Signal Transformer, 15mH Unshielded Inductor 12A 100mOhm Nonstandard,	View
CH-1	Signal Transformer, 100mH Unshielded Inductor 1A 1.5Ohm Nonstandard,	View
CH0402-50RJNPA	Vishay Sfernice, 50 Ohms ±5% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH0603-50RJNTA	Vishay Sfernice, 50 Ohms ±5% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) Thin Film, CH	View
CH0402-200RGFPA	Vishay Sfernice, 200 Ohms ±2% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH0402-100RGFPA	Vishay Sfernice, 100 Ohms ±2% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH-4	Signal Transformer, 70mH Unshielded Inductor 4A 600mOhm Nonstandard,	View
CH0603-250RJNTA	Vishay Sfernice, 250 Ohms ±5% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) Thin Film, CH	View
CH-16	Signal Transformer, 15mH Unshielded Inductor 16A 80mOhm Nonstandard,	View
CH-25	Signal Transformer, 5mH Unshielded Inductor 25A 25mOhm Nonstandard,	View
CH0402-18RJFPA	Vishay Sfernice, 18 Ohms ±5% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH0603-50RJNTA	Vishay Sfernice, 50 Ohms ±5% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) Thin Film, CH	View

CH-1

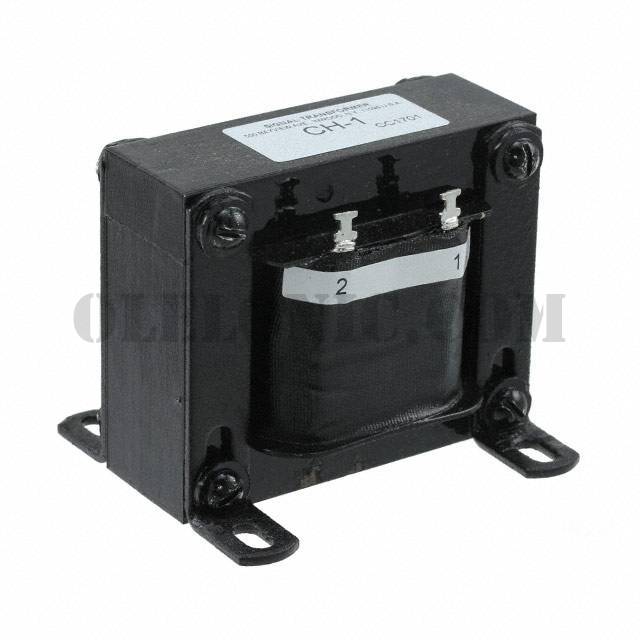

Part NumberCH-1
