Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF

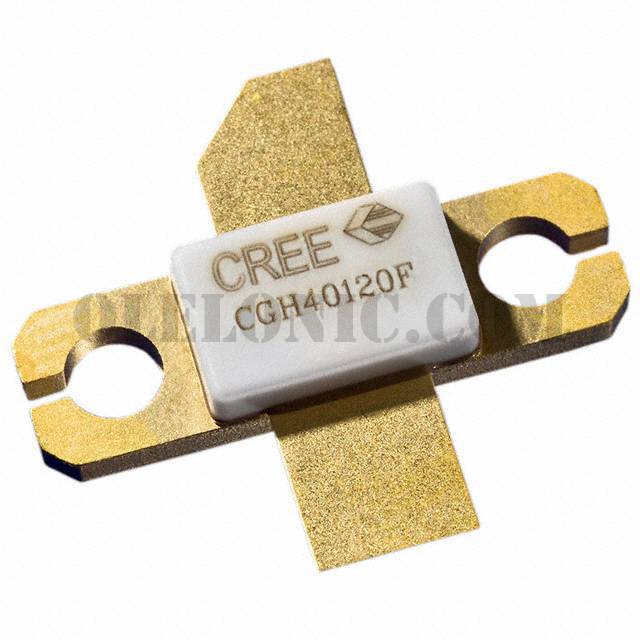

Datasheet	CGH40120F
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	GaN
Packaging	Tray
Part Status	Active
Transistor Type	HEMT
Frequency	0Hz ~ 4GHz
Gain	19dB
Voltage - Test	28V
Current Rating (Amps)	28A
Noise Figure	-
Current - Test	1A
Power - Output	120W
Voltage - Rated	84V
Package / Case	440193
Supplier Device Package	440193
Base Part Number	CGH40*
