CEDM8001 TR

CEDM8001 TR

Part NumberCEDM8001 TR

ManufacturerCentral Semiconductor Corp

DescriptionMOSFET P-CH 20V 0.1A SOT-883

DatasheetCEDM8001

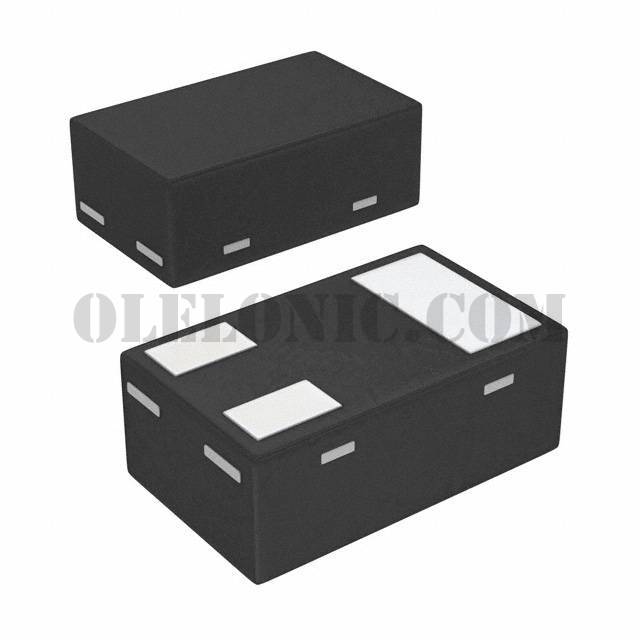

Package / CaseSC-101, SOT-883

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 100mA (Ta) 100mW (Ta) Surface Mount SOT-883

To learn about the specification of CEDM8001 TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CEDM8001 TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CEDM8001 TR.
We are offering CEDM8001 TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CEDM8001 TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CEDM8001
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4V
Rds On (Max) @ Id, Vgs	8Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.66nC @ 4.5V
Vgs (Max)	10V
Input Capacitance (Ciss) (Max) @ Vds	45pF @ 3V
FET Feature	-
Power Dissipation (Max)	100mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883
Package / Case	SC-101, SOT-883
