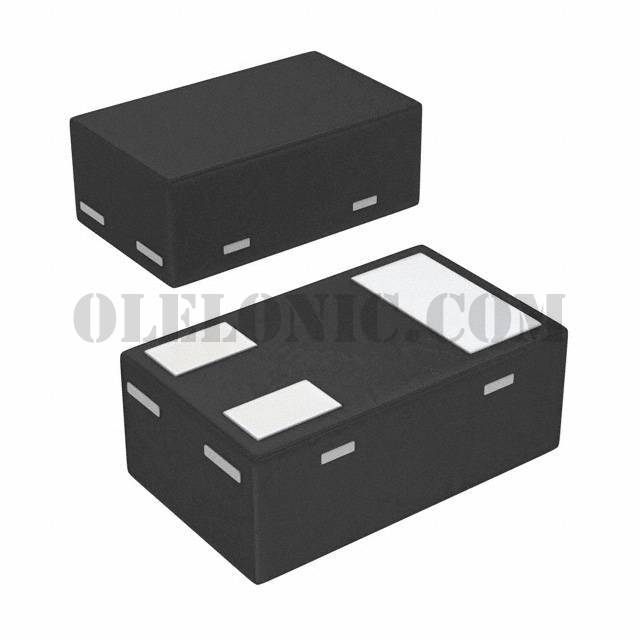

CEDM7002AE TR

CEDM7002AE TR

Part NumberCEDM7002AE TR

ManufacturerCentral Semiconductor Corp

DescriptionMOSFET NCH 60V 0.3A SOT883

DatasheetCEDM7002AE

Package / CaseSC-101, SOT-883

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 300mA (Ta) 100mW (Ta) Surface Mount SOT-883L

To learn about the specification of CEDM7002AE TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CEDM7002AE TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CEDM7002AE TR.
We are offering CEDM7002AE TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CEDM7002AE TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CEDM7002AE
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.5nC @ 4.5V
Vgs (Max)	20V
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
FET Feature	-
Power Dissipation (Max)	100mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883L
Package / Case	SC-101, SOT-883
