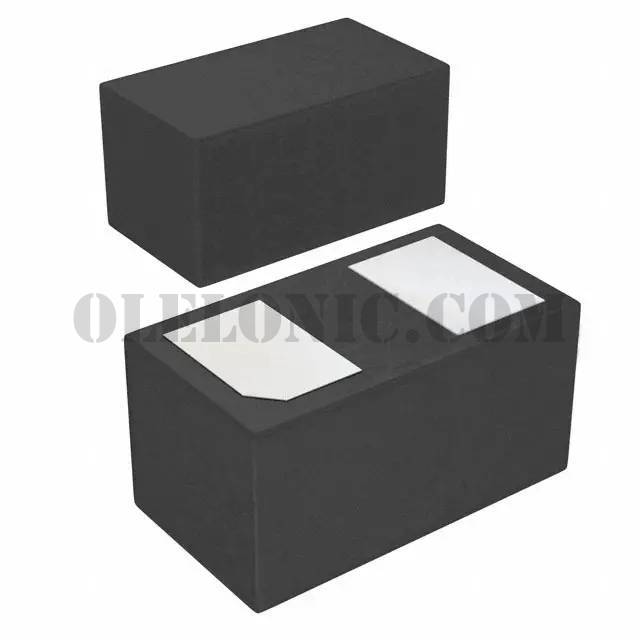

CDSZ01100-HF

CDSZ01100-HF

Part NumberCDSZ01100-HF

ManufacturerComchip Technology

DescriptionDIODE GEN PURP 80V 100MA 0201

DatasheetCDSZ01100-HF

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 80V 100mA Surface Mount 0201 (0603 Metric)

To learn about the specification of CDSZ01100-HF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDSZ01100-HF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDSZ01100-HF.
We are offering CDSZ01100-HF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CDSZ01100-HF - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CDSZ01100-HF
Standard Package	10000
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	1.2V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	500nA @ 80V
Capacitance @ Vr, F	3pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Operating Temperature - Junction	-40°C ~ 150°C
