Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	CDBHM120L~1100L-HF
Standard Package	2500
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Schottky
Voltage - Peak Reverse (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	850mV @ 1A
Current - Reverse Leakage @ Vr	500µA @ 100V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

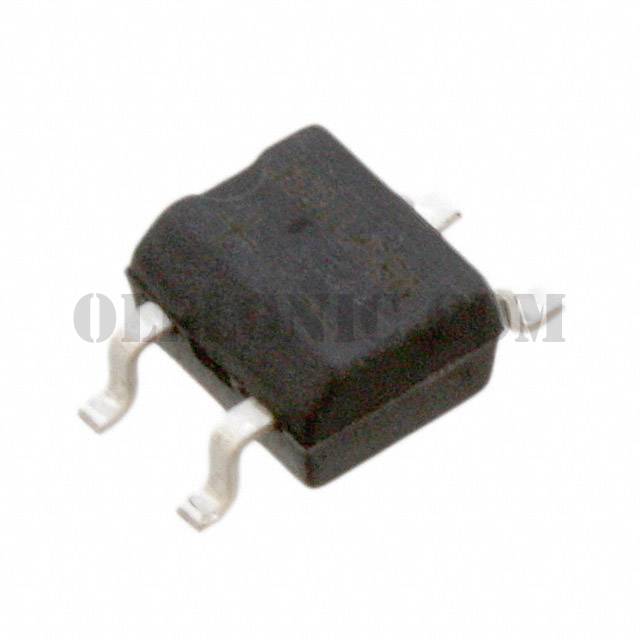

Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	MBS
Base Part Number	CDBHM1100
