Categories	Capacitors / Ceramic Capacitors
Datasheet	CC45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CC45
Packaging	Bulk
Part Status	Active
Capacitance	22pF
Tolerance	±5%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	SL
Operating Temperature	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.217" Dia (5.50mm)
Height - Seated (Max)	0.374" (9.50mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked

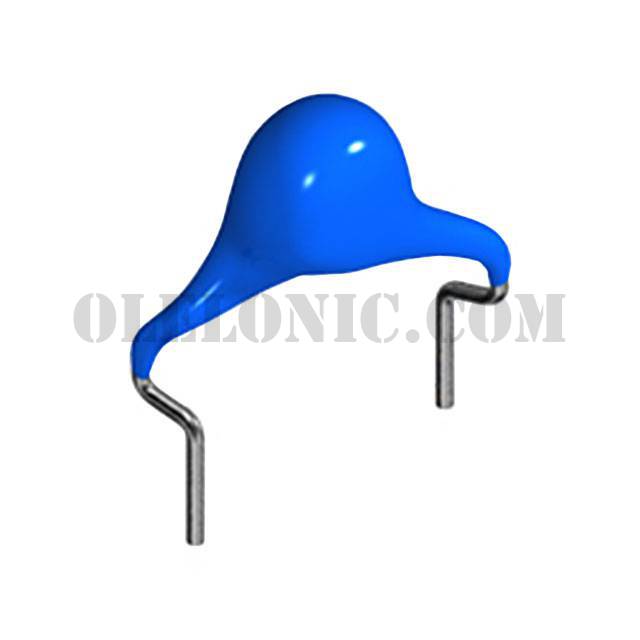

CC45SL3FD220JYGNA	TDK Corporation, 22pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3DD220JYNNA	TDK Corporation, 22pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD330JYNNA	TDK Corporation, 33pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD470JYNNA	TDK Corporation, 47pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD180JYGNA	TDK Corporation, 18pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD100JYNNA	TDK Corporation, 10pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD150JYNNA	TDK Corporation, 15pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD330JYGNA	TDK Corporation, 33pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD391JYVNA	TDK Corporation, 390pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD181JYGNA	TDK Corporation, 180pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD100JYVNA	TDK Corporation, 10pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD560JYNNA	TDK Corporation, 56pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View

CC45SL3FD220JYGNA

Part NumberCC45SL3FD220JYGNA
