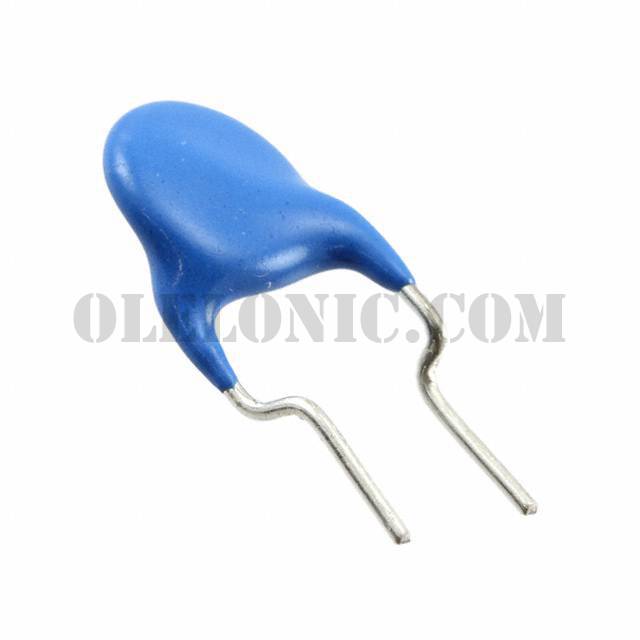

Categories	Capacitors / Ceramic Capacitors
Datasheet	CC45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CC45
Packaging	Bulk
Part Status	Active
Capacitance	100pF
Tolerance	±5%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	SL
Operating Temperature	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.295" Dia (7.50mm)
Height - Seated (Max)	0.453" (11.50mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Lead Style	Formed Leads - Kinked

CC45SL3AD101JYNNA	TDK Corporation, 100pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD270JYNNA	TDK Corporation, 27pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD151JYNNA	TDK Corporation, 150pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD180JYNNA	TDK Corporation, 18pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD150JYNNA	TDK Corporation, 15pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD121JYNNA	TDK Corporation, 120pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD181JYGNA	TDK Corporation, 180pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD390JYGNA	TDK Corporation, 39pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD390JYGNA	TDK Corporation, 39pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD470JYVNA	TDK Corporation, 47pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD390JYNNA	TDK Corporation, 39pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD181JYGNA	TDK Corporation, 180pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View

CC45SL3DD101JYNNA

Part NumberCC45SL3DD101JYNNA
