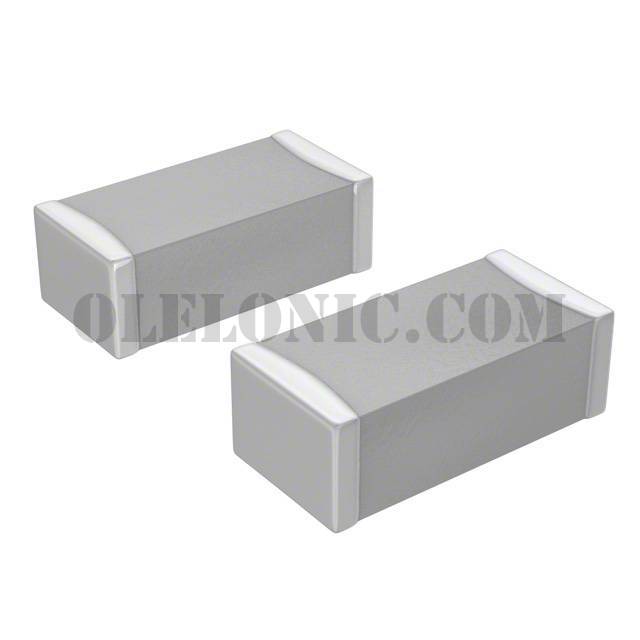

Categories	Capacitors / Film Capacitors
Datasheet	CB Series-PEN
Standard Package	3900
Manufacturer	AVX Corporation
Series	CB
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	40V
Voltage Rating - DC	63V
Dielectric Material	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension	0.130" L x 0.063" W (3.30mm x 1.60mm)
Height - Seated (Max)	0.045" (1.15mm)
Termination	Solder Pads
Lead Spacing	-
Applications	General Purpose
Ratings	-
Features	-
