C4D02120E

C4D02120E

Part NumberC4D02120E

ManufacturerCree/Wolfspeed

DescriptionDIODE SCHOTTKY 1.2KV 2A TO252-2

DatasheetC4D02120E

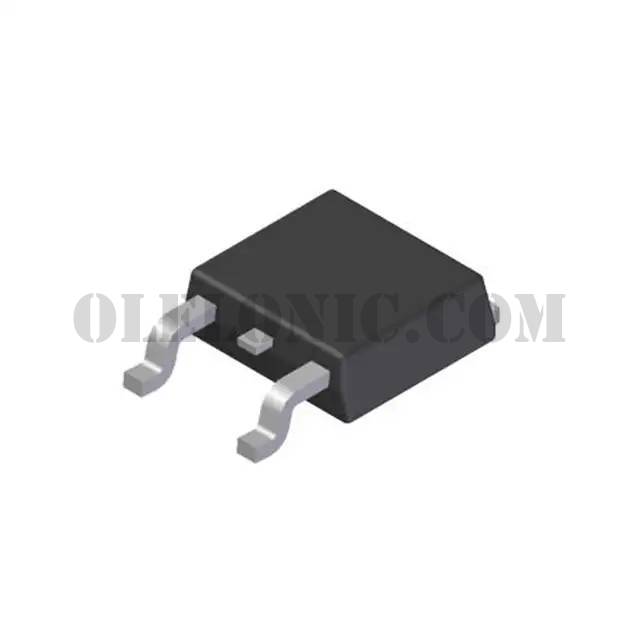

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 1200V 10A (DC) Surface Mount TO-252-2

To learn about the specification of C4D02120E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C4D02120E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C4D02120E.
We are offering C4D02120E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

C4D02120E - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	C4D02120E
Standard Package	75
Manufacturer	Cree/Wolfspeed
Series	Z-Rec®
Packaging	Tube
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	10A (DC)
Voltage - Forward (Vf) (Max) @ If	1.8V @ 2A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	50µA @ 1200V
Capacitance @ Vr, F	167pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	TO-252-2
Operating Temperature - Junction	-55°C ~ 175°C
