Categories	Capacitors / Film Capacitors
Datasheet	C4A(S,T) Series
Standard Package	234
Manufacturer	KEMET
Series	C4AT
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±5%
Voltage Rating - AC	350V
Voltage Rating - DC	600V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	7.7 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.260" L x 0.512" W (32.00mm x 13.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4ATHBW5200A3NJ	KEMET, 20µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATGBW5100A3FJ	KEMET, 10µF Film Capacitor 275V 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATDBW5600A30J	KEMET, 60µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATDBW5300A30J	KEMET, 30µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATJBW5100A3MJ	KEMET, 10µF Film Capacitor 400V 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATMBW5100A3NJ	KEMET, 10µF Film Capacitor 450V 850V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATMBW4470A3LJ	KEMET, 4.7µF Film Capacitor 450V 850V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATFBW5100A3FJ	KEMET, 10µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, C4AT	View
C4ATHBU4100A3BJ	KEMET, 1µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial, C4AT	View
C4ATFBW5400A3NJ	KEMET, 40µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATDBW5200A30J	KEMET, 20µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View
C4ATHBW4900A3LJ	KEMET, 9µF Film Capacitor 350V 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AT	View

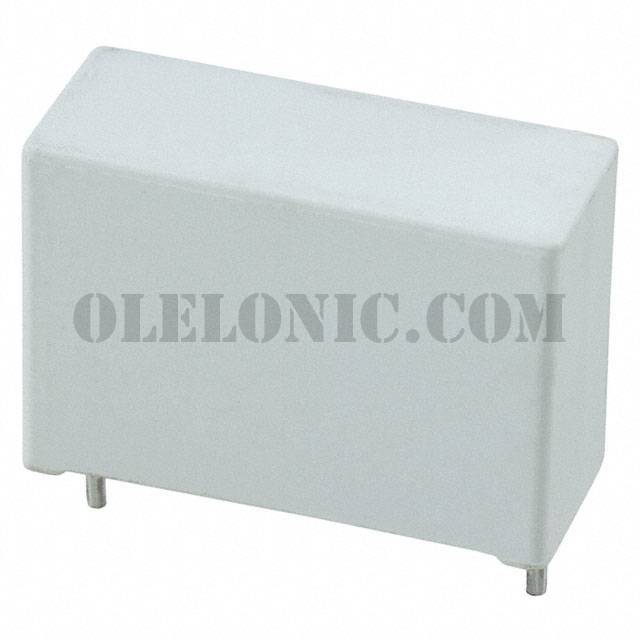

C4ATHBU4100A3BJ

Part NumberC4ATHBU4100A3BJ
